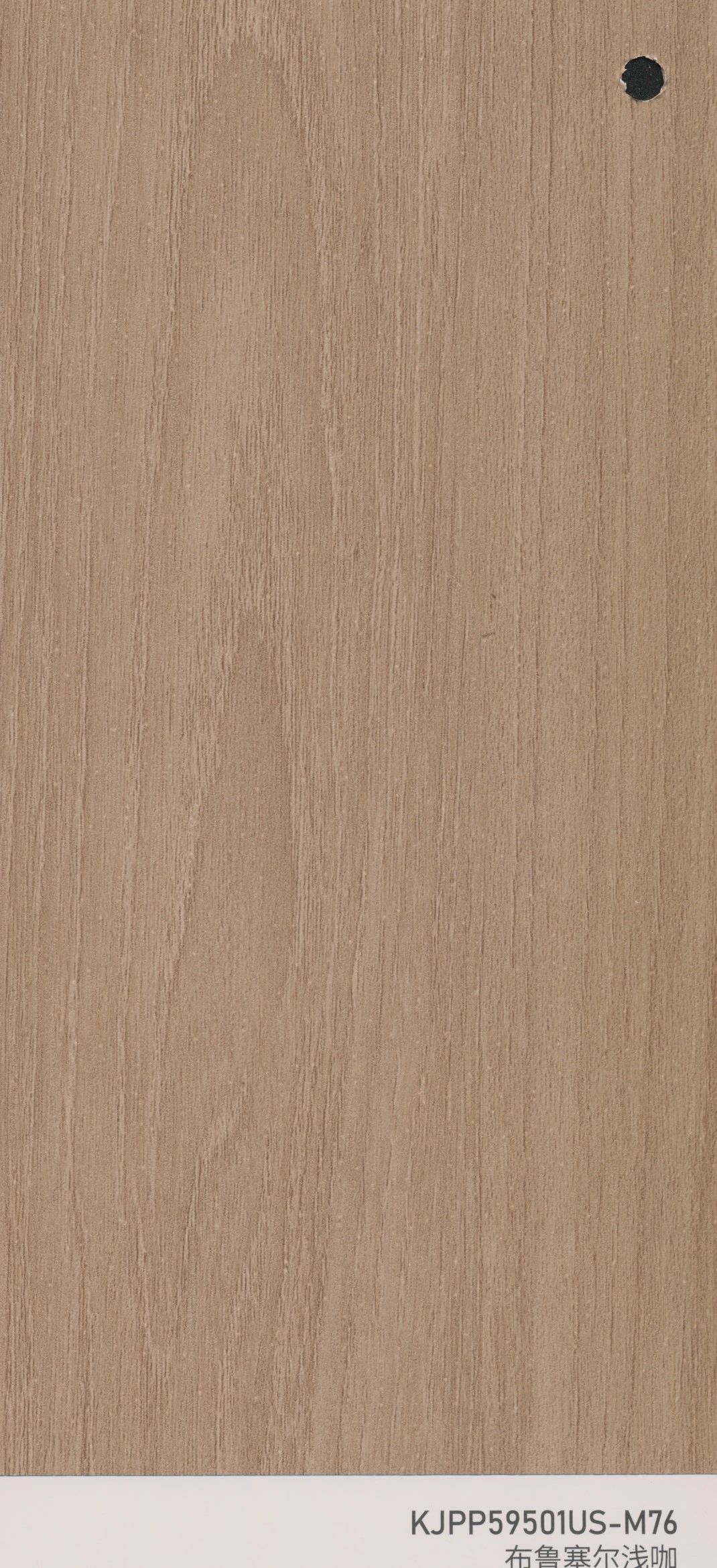

Brussels light coffee
KJPP59501US-M76
布鲁塞尔浅咖
WPC / SPATIAL MATERIAL SYSTEM
Begin with
the space.
From a quiet home to a public interior, materials have different work to do. Explore the setting first; compare finishes, profiles and connections next.
WPC SYSTEM12 SETTINGS / 127 SPATIAL REFERENCES
SPATIAL ATLAS / 12 PERSPECTIVES
Every space.
A different expression.
Read the room before choosing a surface. Explore the settings, then open the complete image collection.
01SPACE / MATERIAL / LIGHT12
Residential spaces
Living rooms, bedrooms, studies and connected interiors.
COMPLETE SPATIAL COLLECTION · 127 VIEWS
Residential spaces
Living rooms, bedrooms, studies and connected interiors.
127 spaces · choose a setting, then explore its complete collection.
The complete study
A window-side desk, open shelving and continuous wood-toned walls form a complete room view.
Open-plan living
Seating, kitchen and staircase are connected by a calm material palette.
A complete living-room palette
A broad sofa wall combines light planes, a veined accent and soft seating.
Daylight across the living room
A large veined wall and pale seating face full-height curtains.
Framed bedroom wall
A centred bed is framed by vertical panels and two pendant lights.
Warm bedroom wall
Vertical wall panels and concealed light frame the bed.
Living room with a stone accent
A light sofa sits against warm wall panels and a veined vertical accent.
A quiet living-room composition
Wood tones, a pale veined wall and curved seating share one setting.
FEATURE WALL DESIGN
One wall. A complete composition.
Start with the space. Explore the elevation, proportions and material arrangement within each design.
6 of 6 designs
FINISHES / NAMED SAMPLES
A name. A code. A physical reference.
Explore 20 named finishes across four collections. Enlarge a sample to compare texture and colour, then request a physical reference by code.

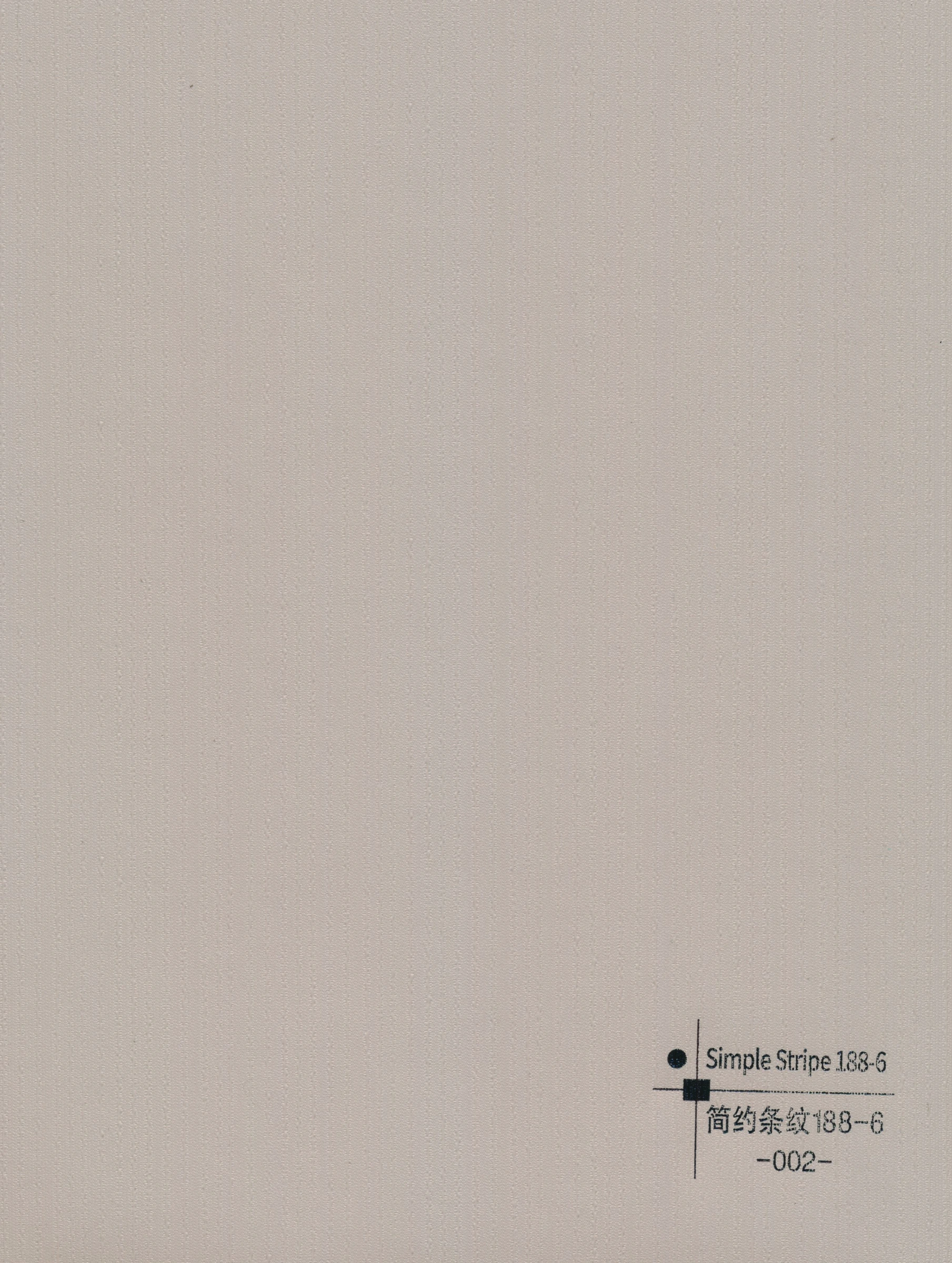

Simple Stripe
188-6 · 002
简约条纹

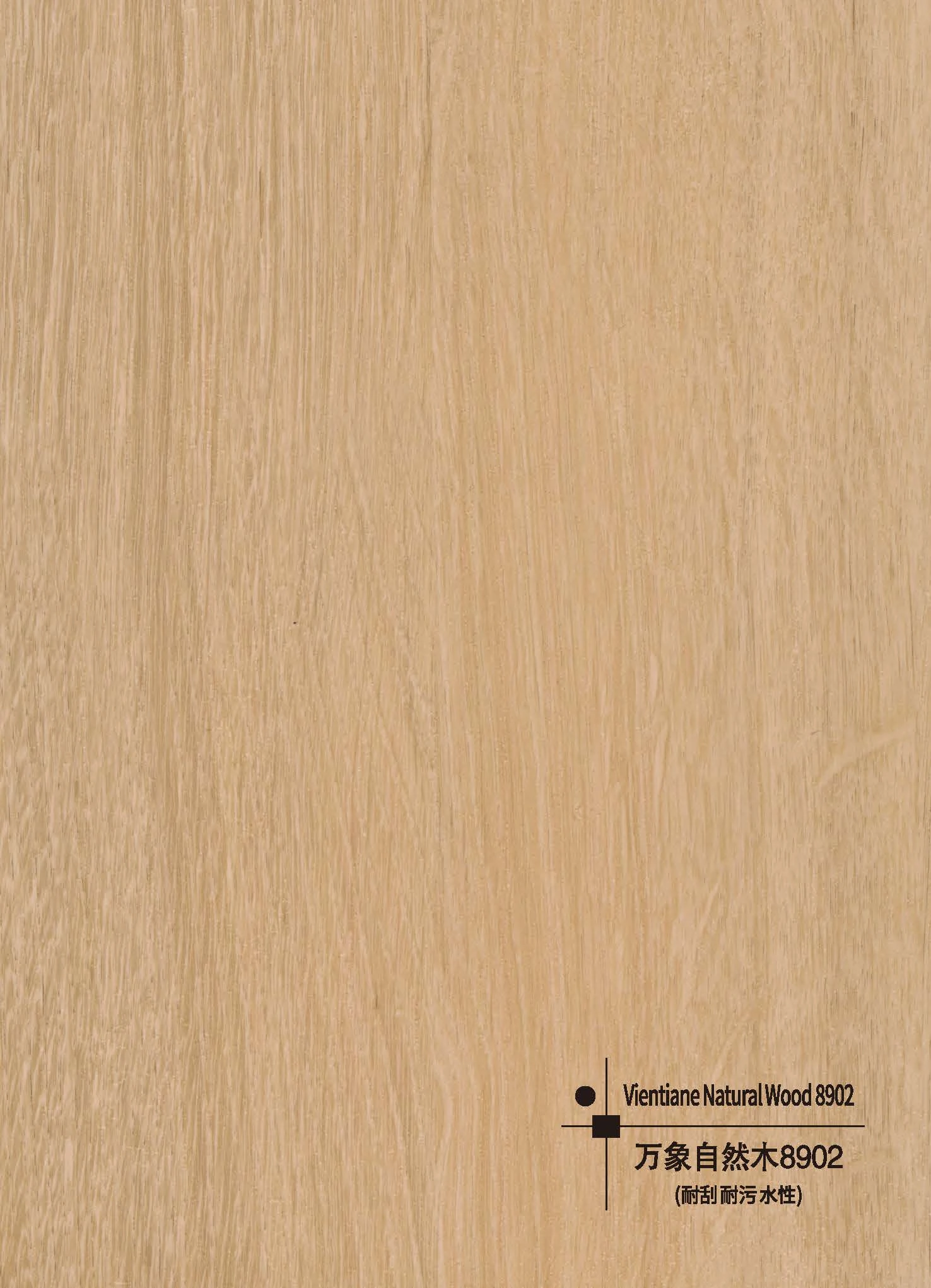

Vientiane Natural Wood
8902
万象自然木

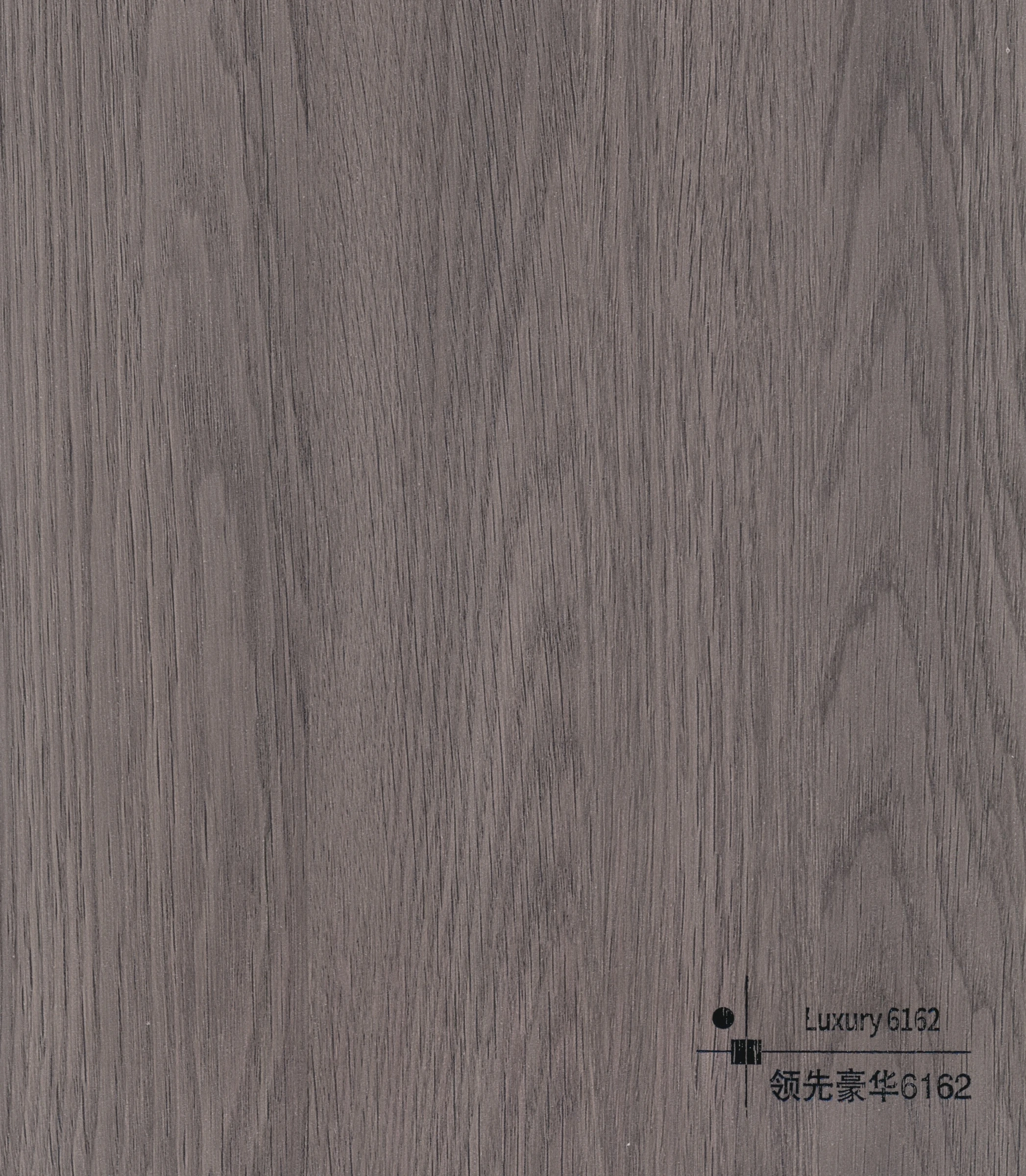

Luxury
6162
领先豪华

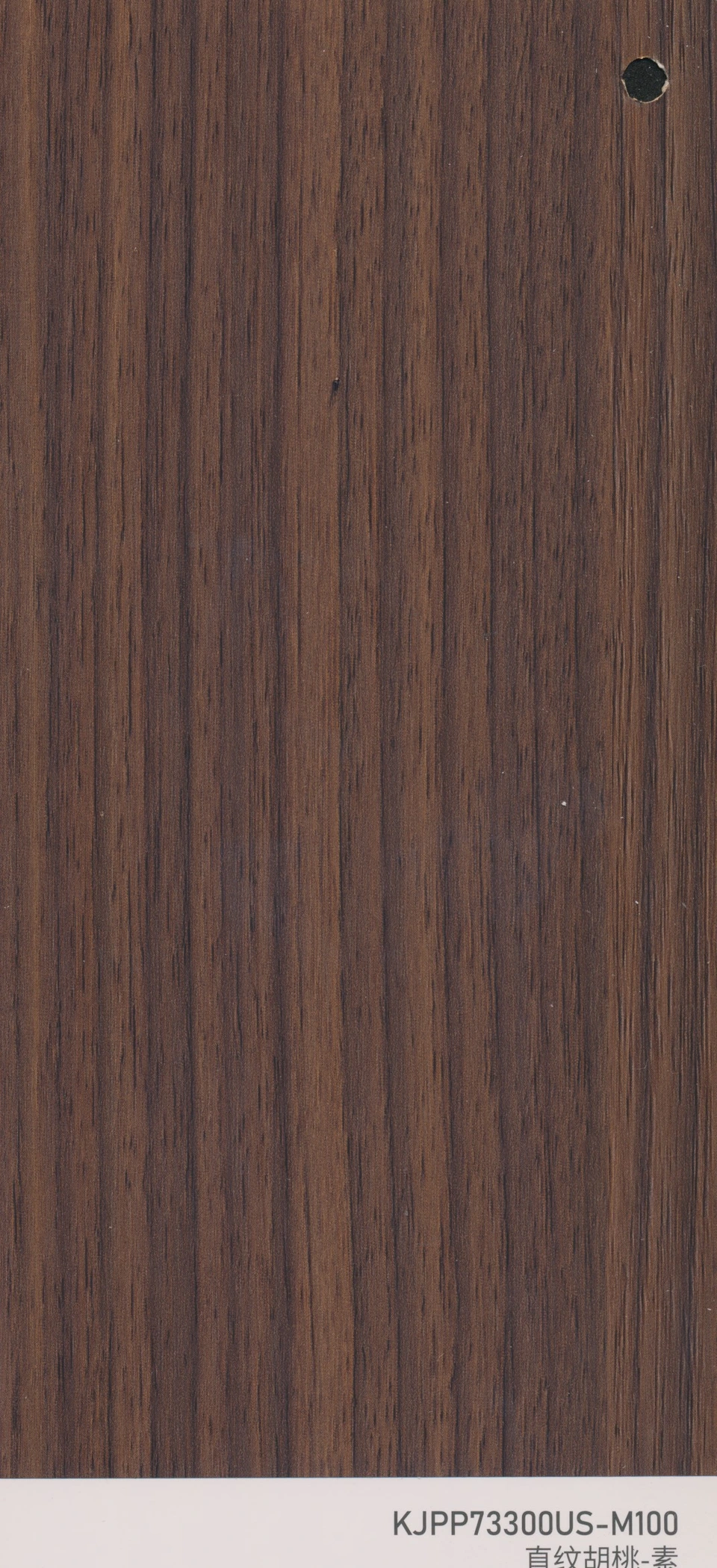

Straight-grain walnut — plain
KJPP73300US-M100
直纹胡桃-素

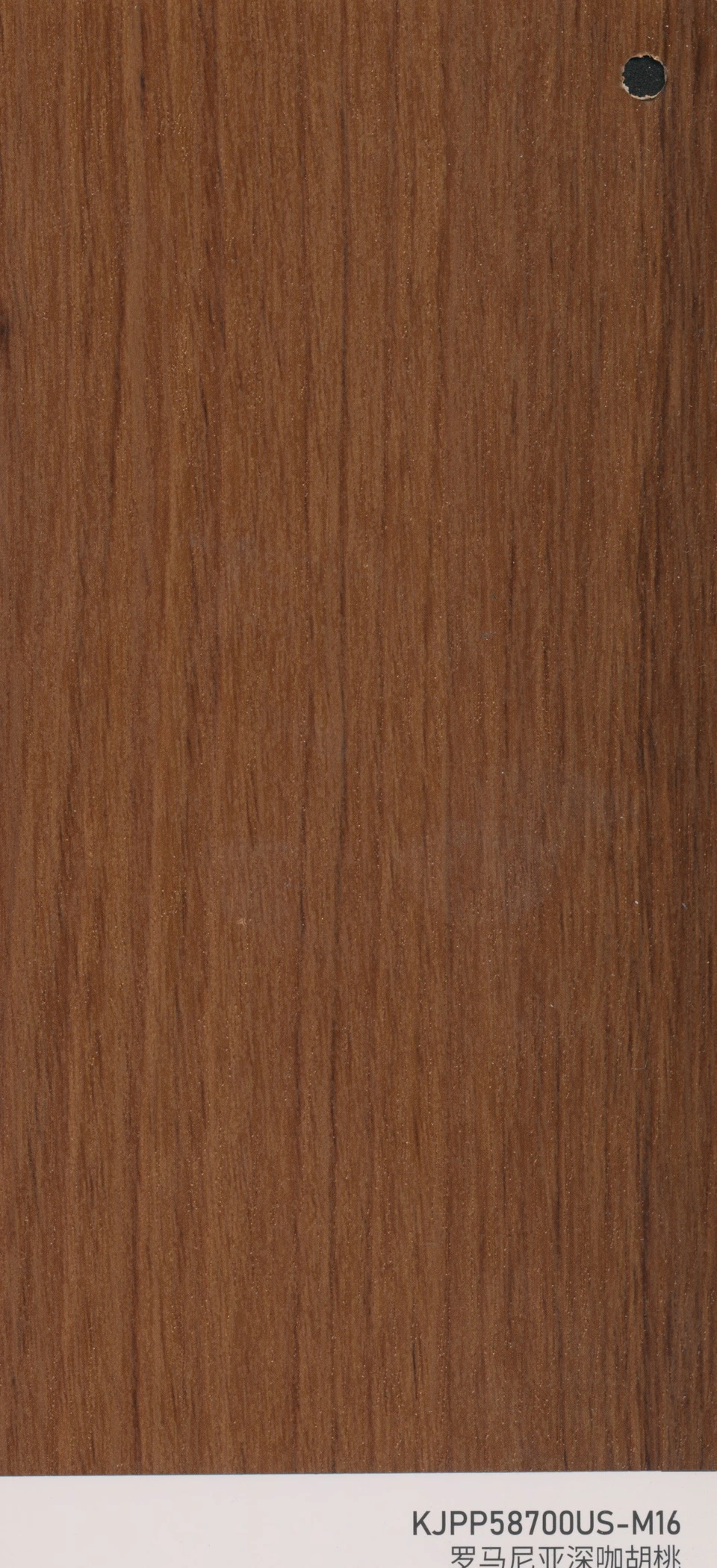

Romanian dark-coffee walnut
KJPP58700US-M16
罗马尼亚深咖胡桃

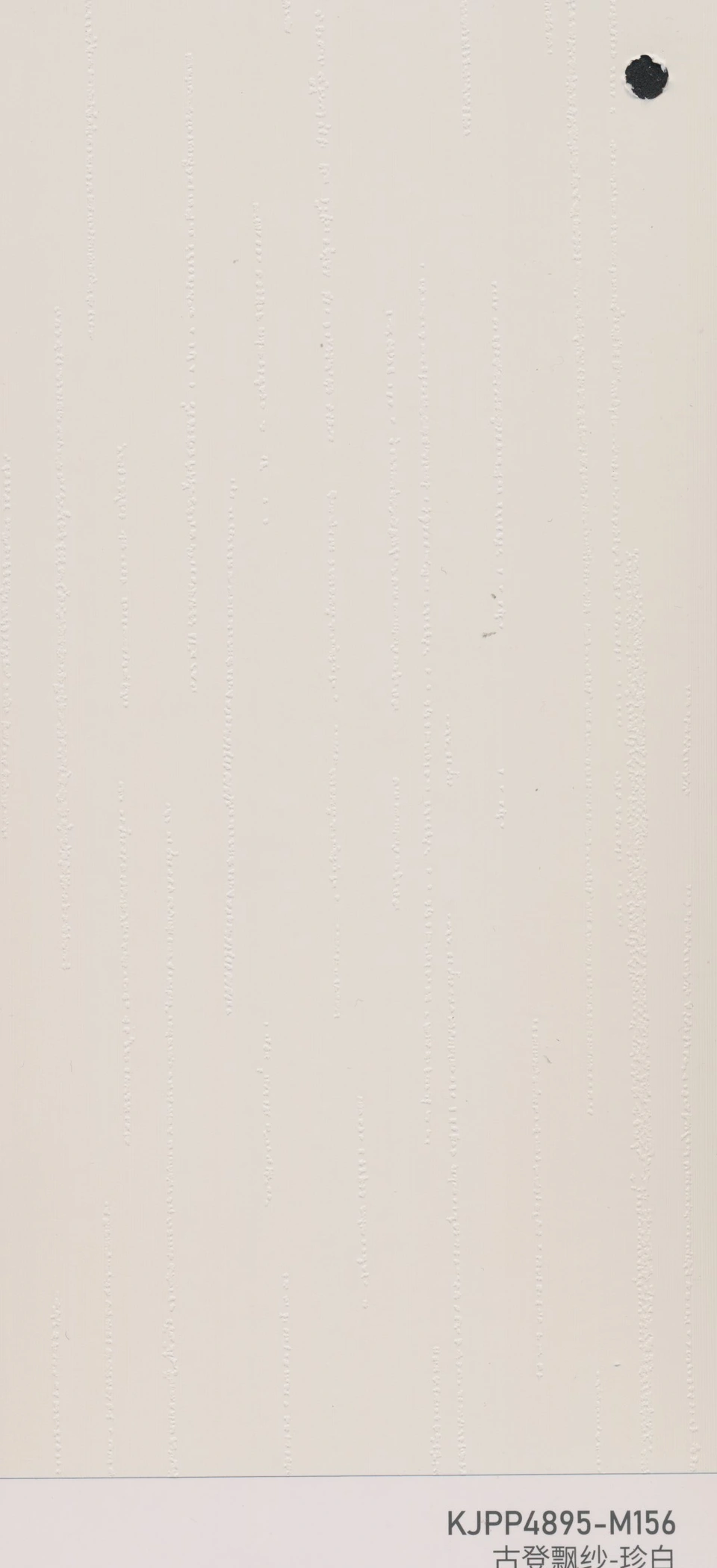

Gudeng gauze — pearl white
KJPP4895-M156
古登飘纱-珍白

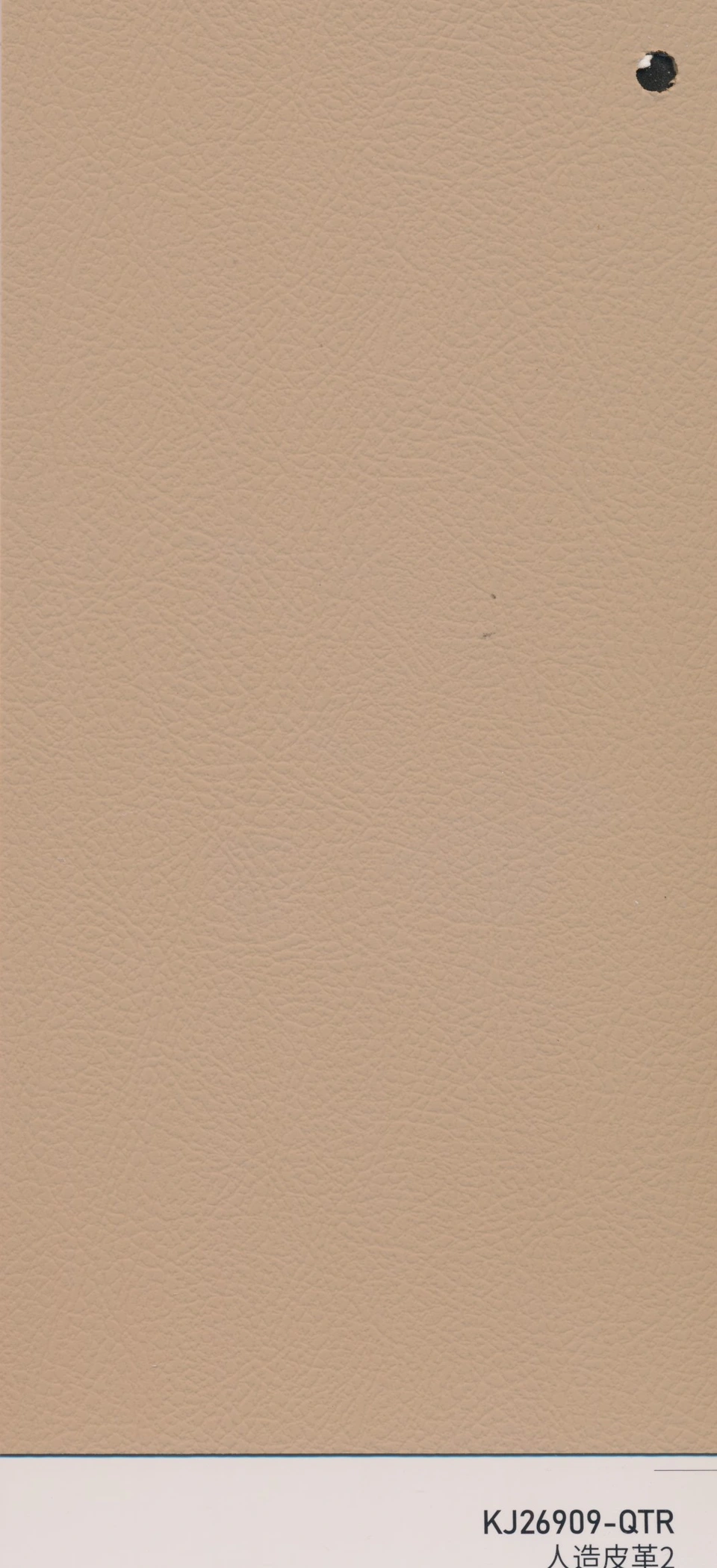

Synthetic leather 2
KJ26909-QTR
人造皮革2

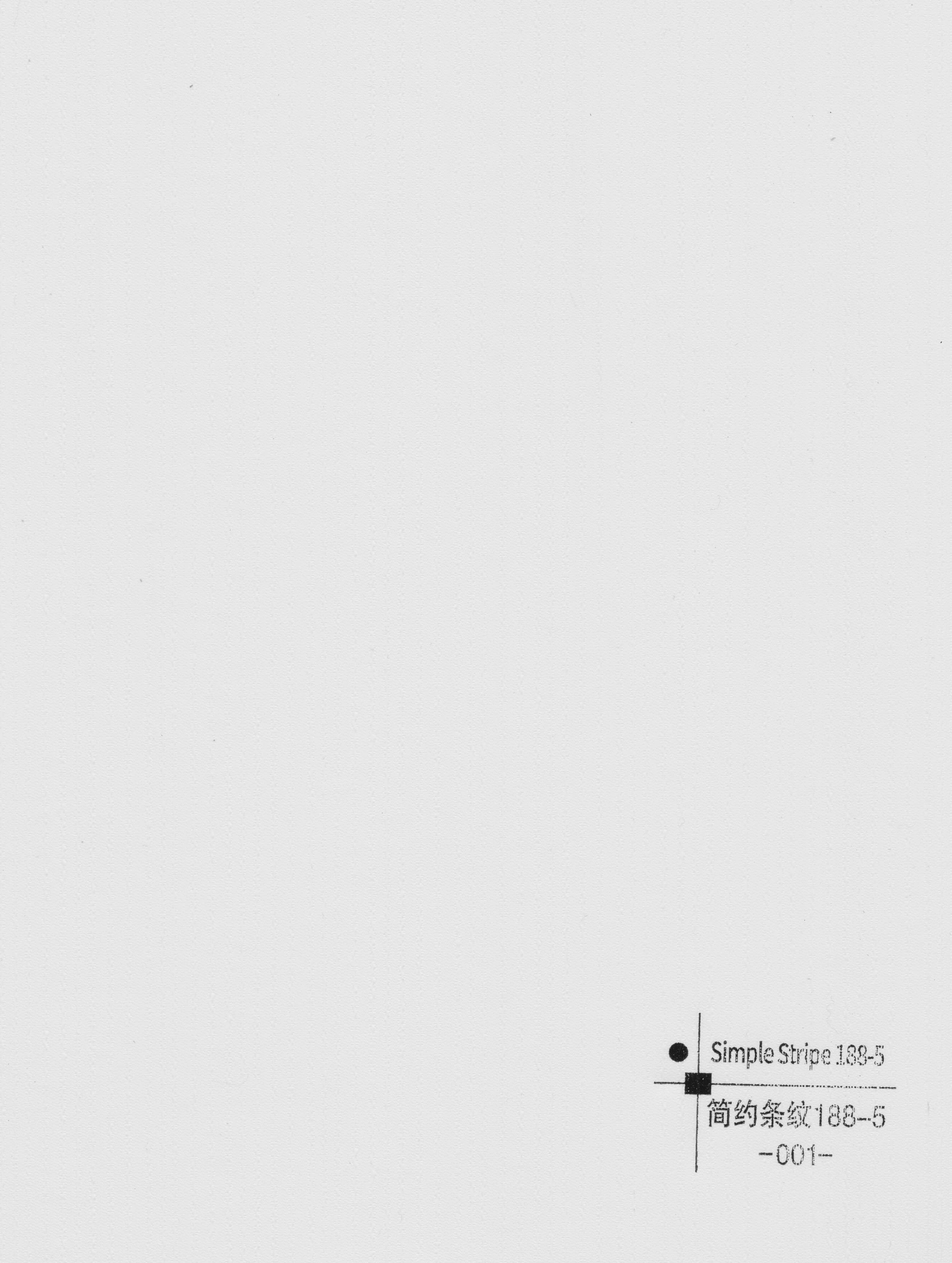

Simple Stripe
188-5 · 001
简约条纹

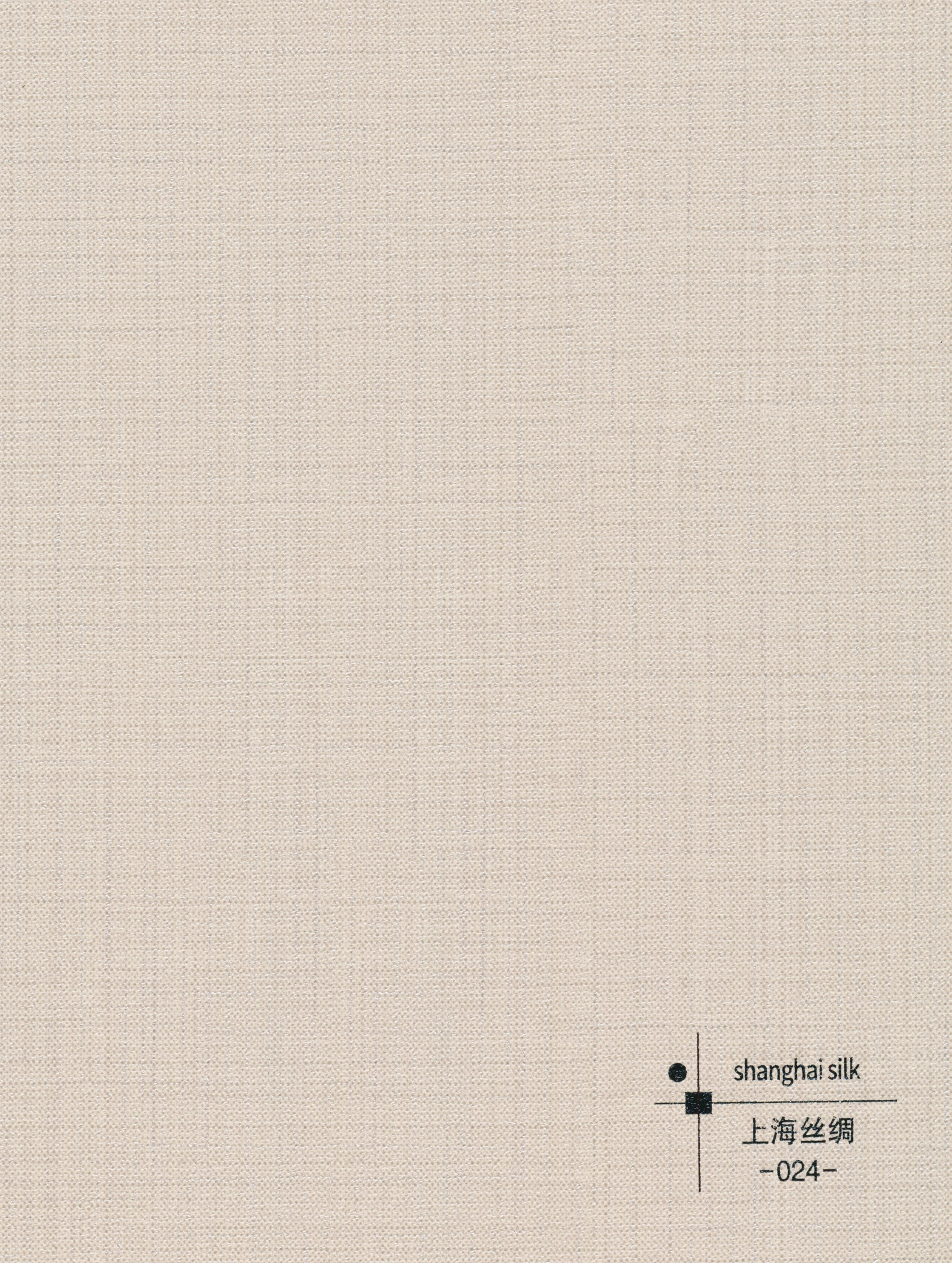

Shanghai silk
024
上海丝绸

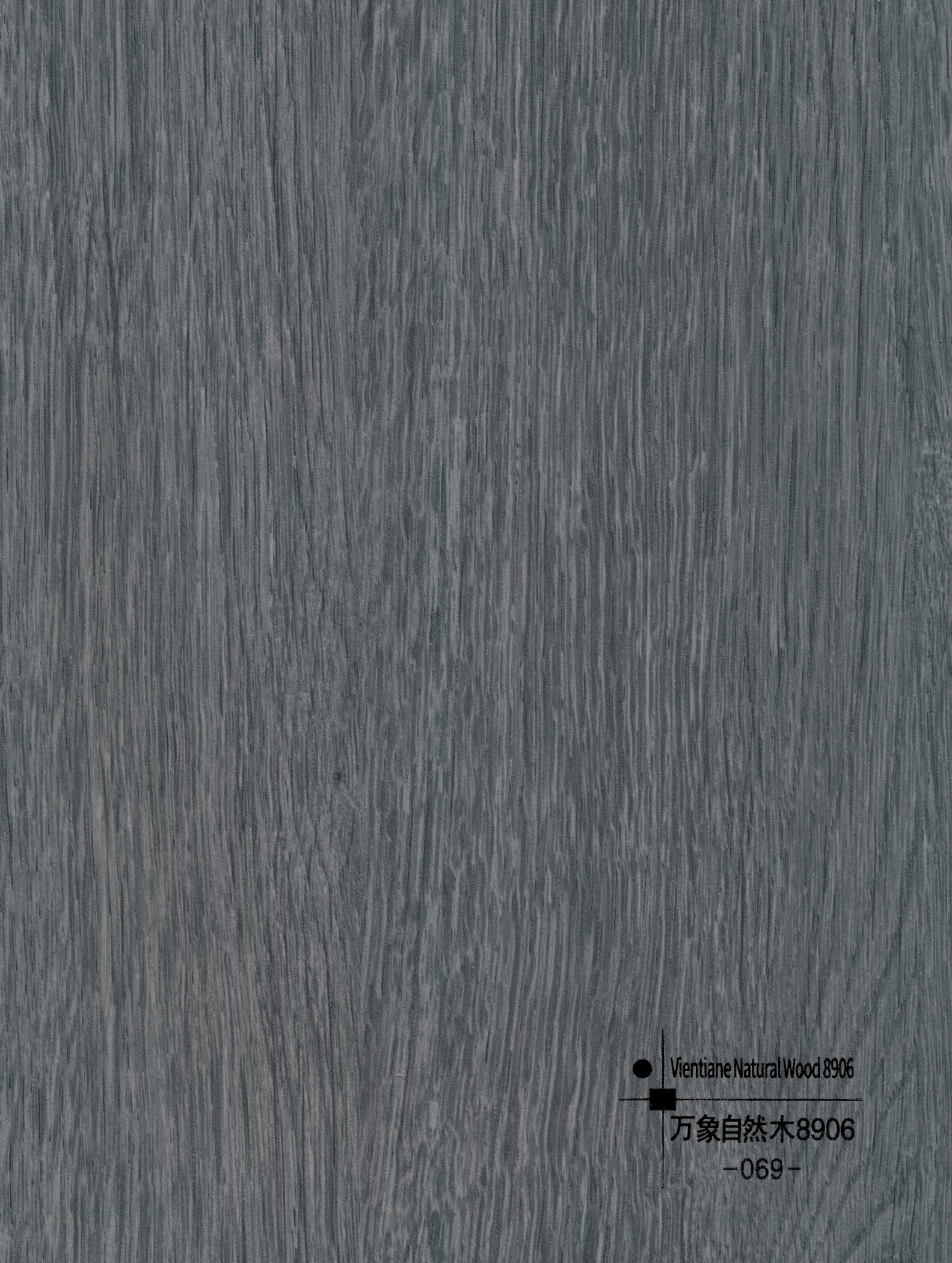

Vientiane Natural Wood
8906 · 069
万象自然木

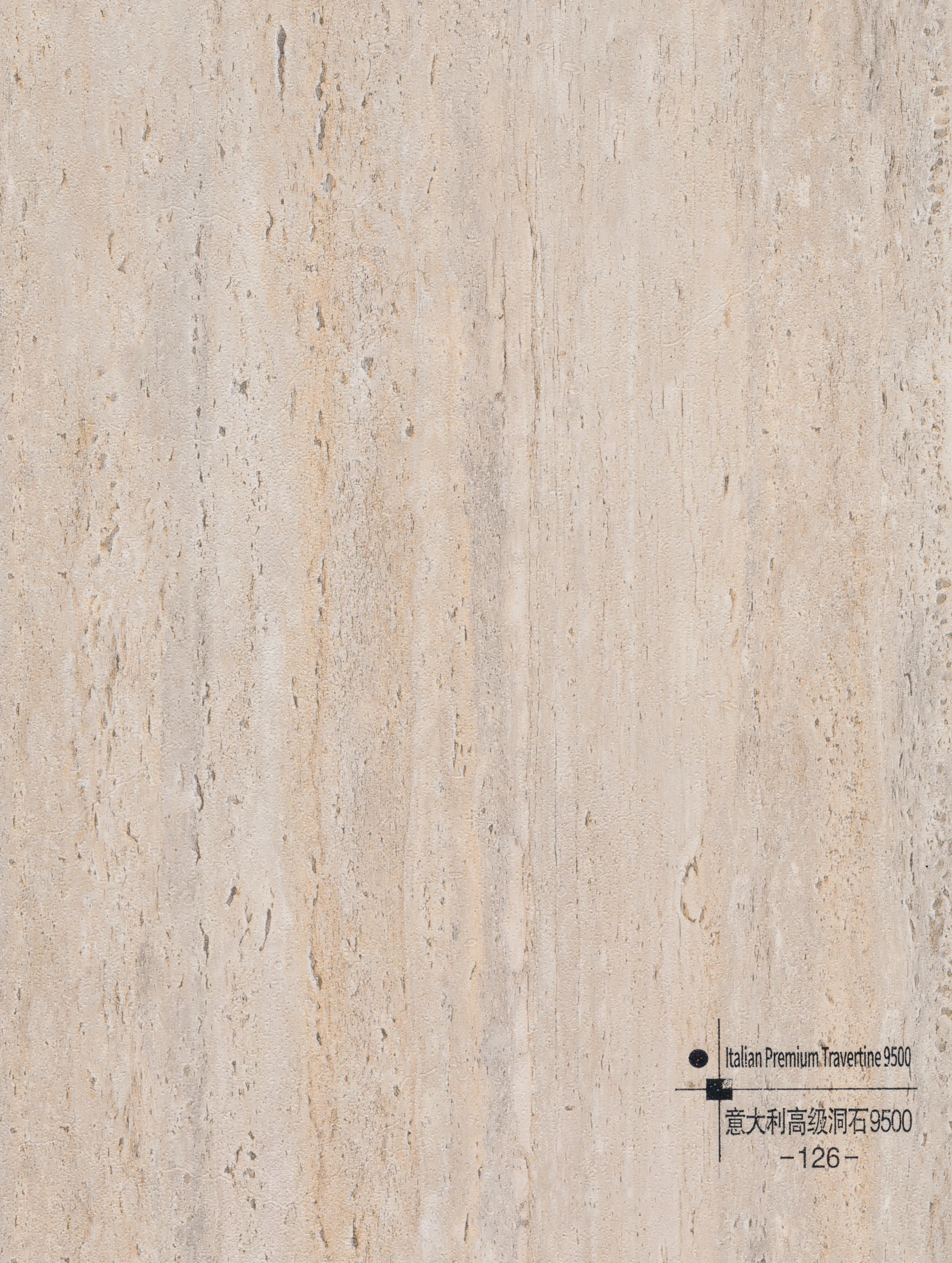

Italian Premium Travertine
9500 · 126
意大利高级洞石

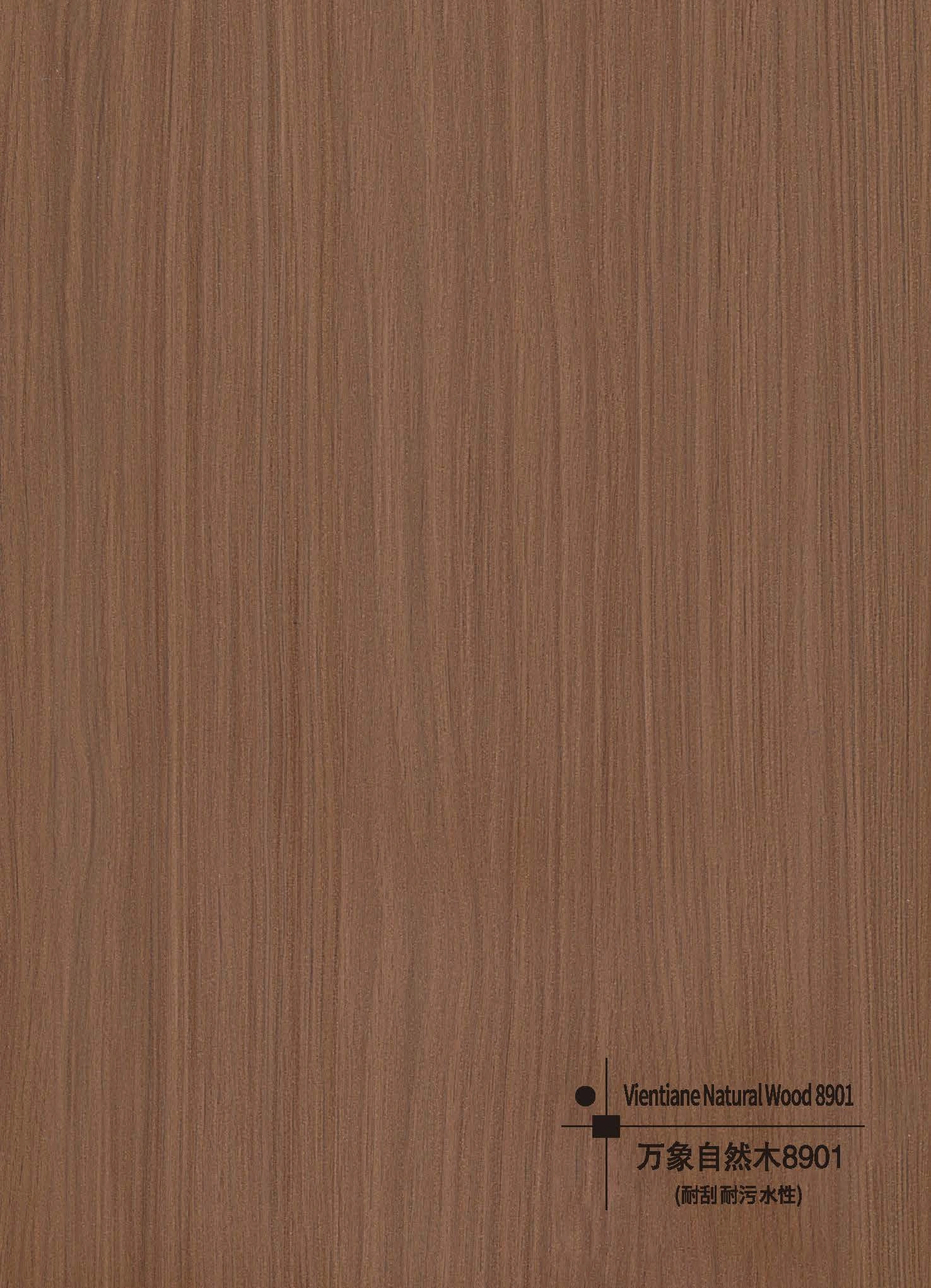

Vientiane Natural Wood
8901
万象自然木

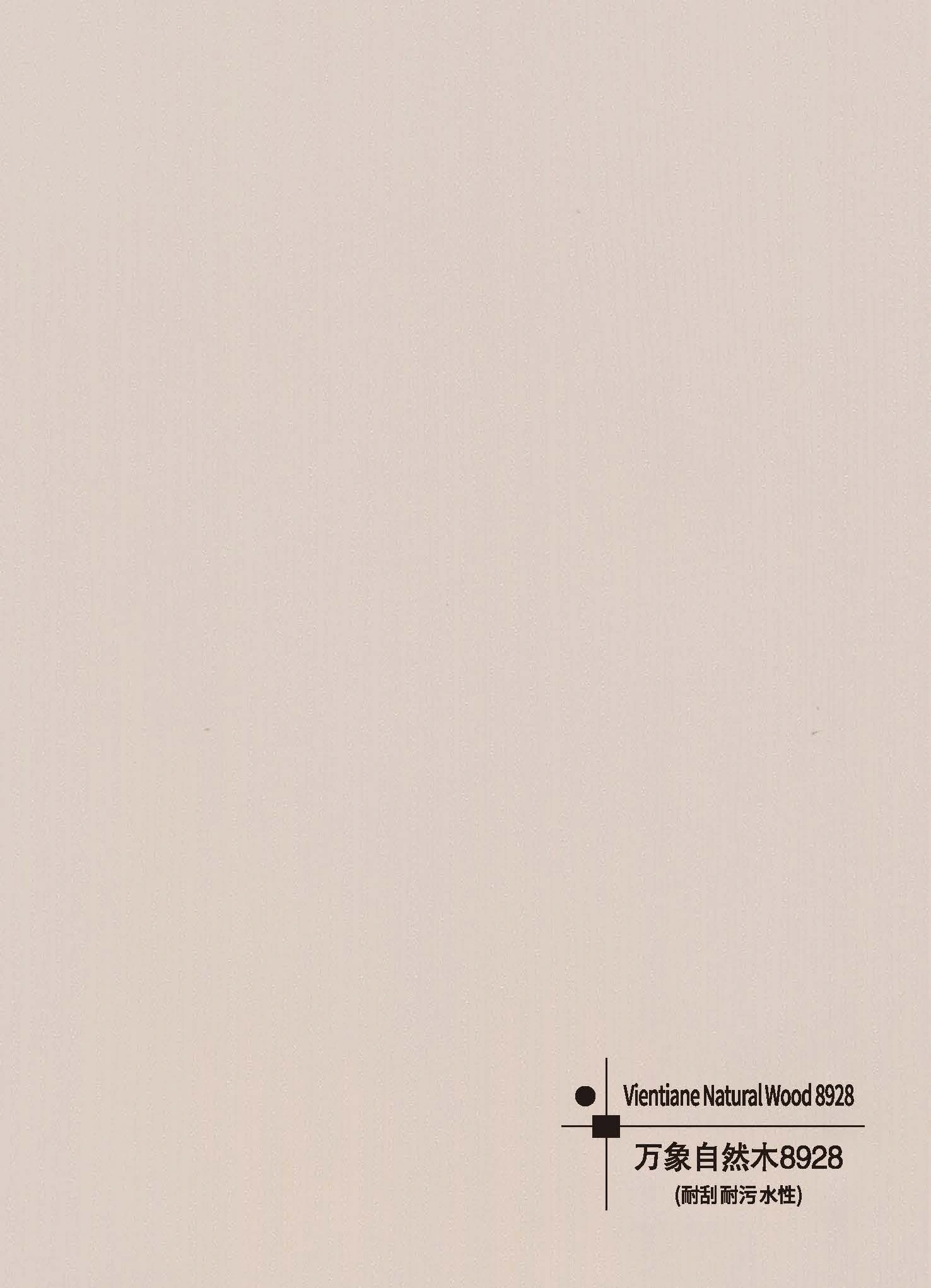

Vientiane Natural Wood
8928
万象自然木

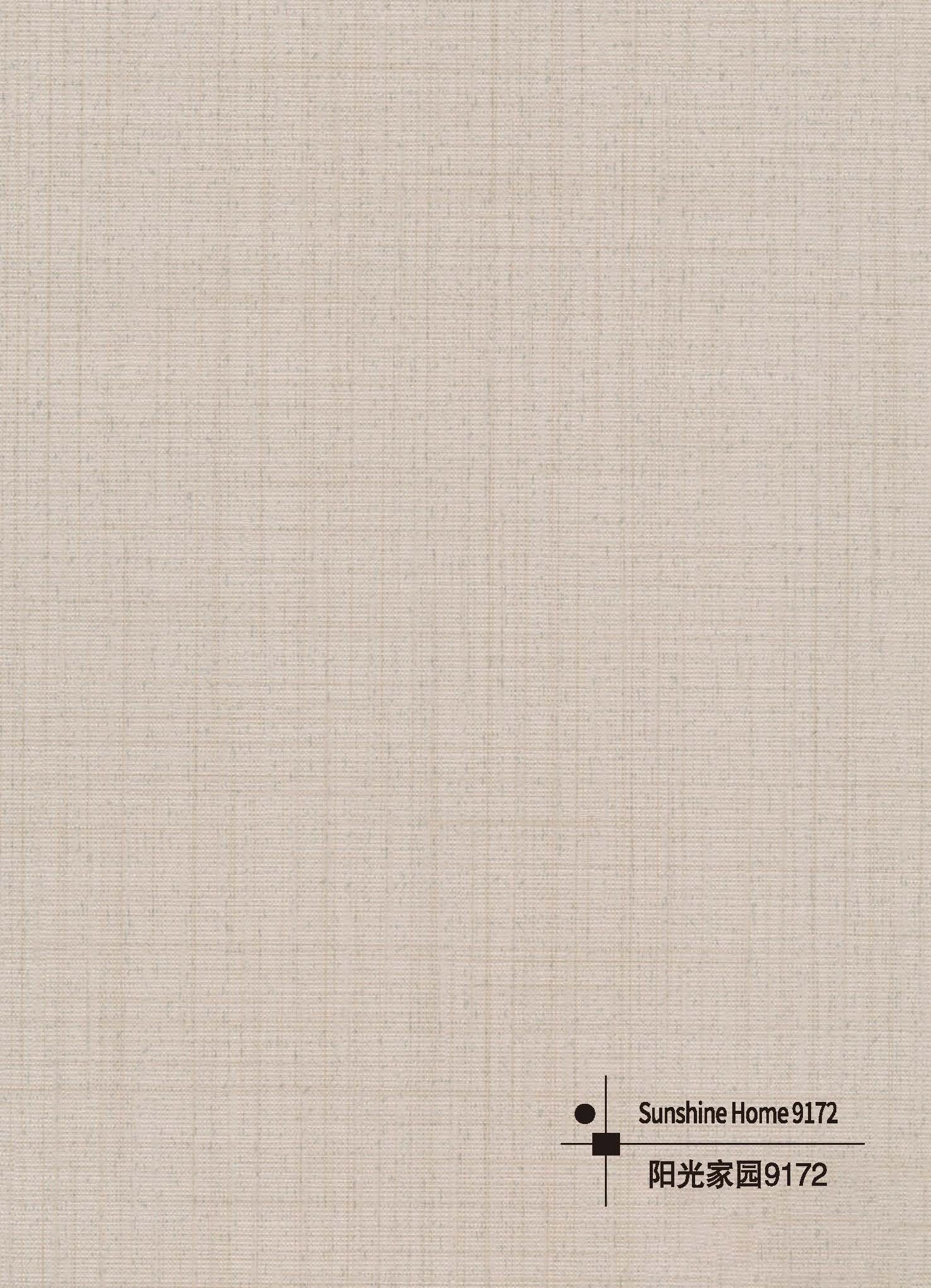

Sunshine Home
9172
阳光家园

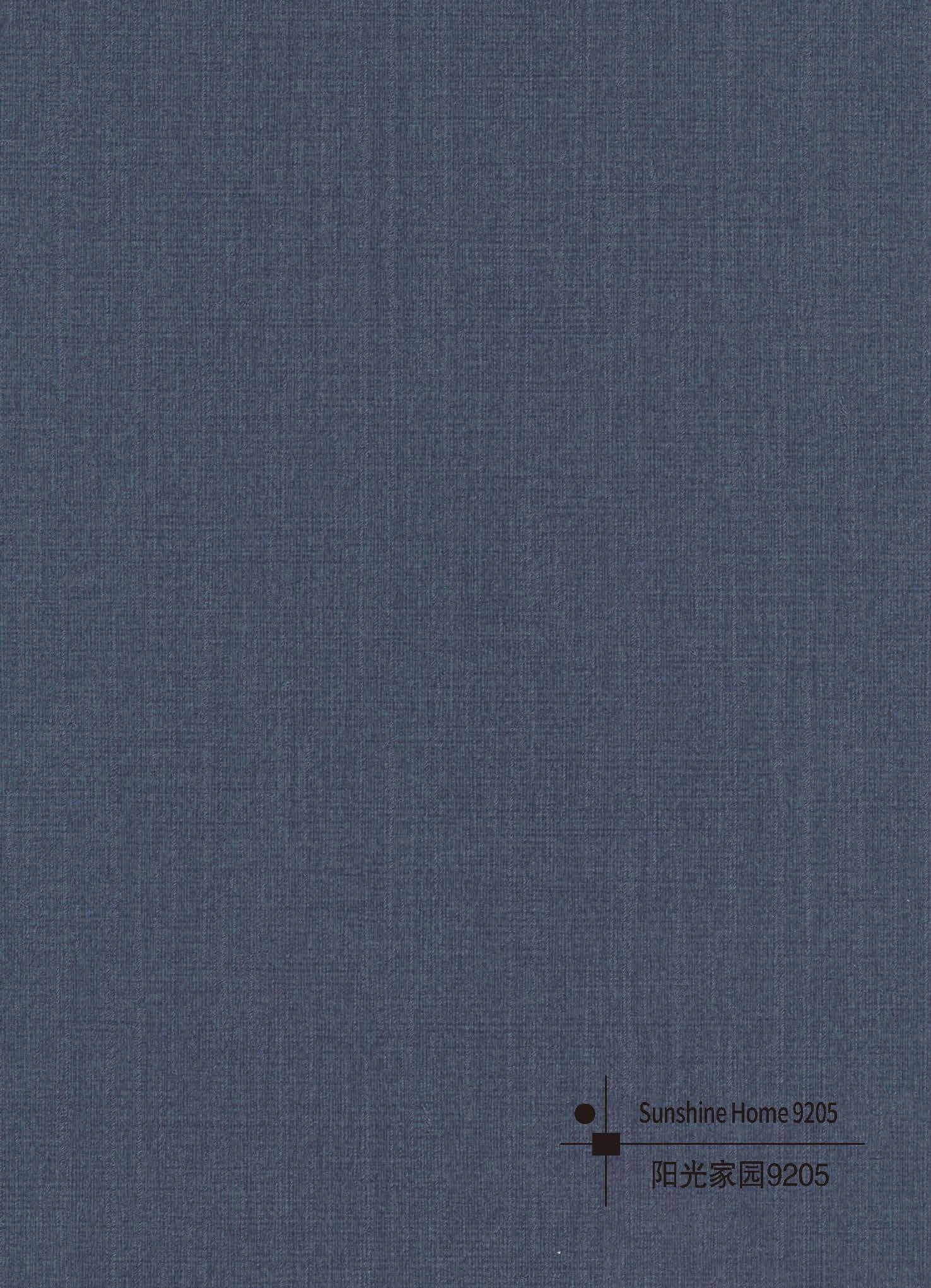

Sunshine Home
9205
阳光家园

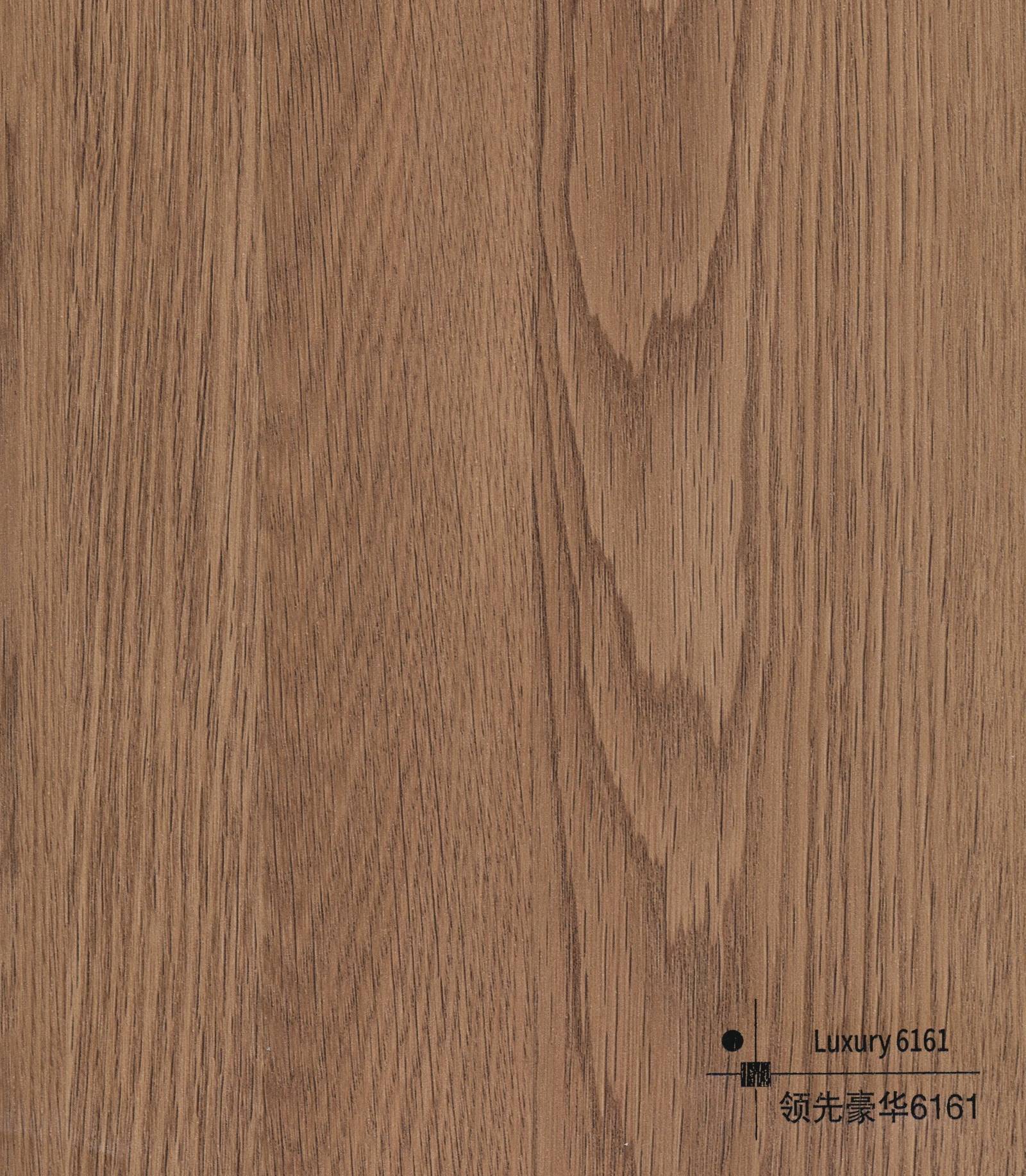

Luxury
6161
领先豪华

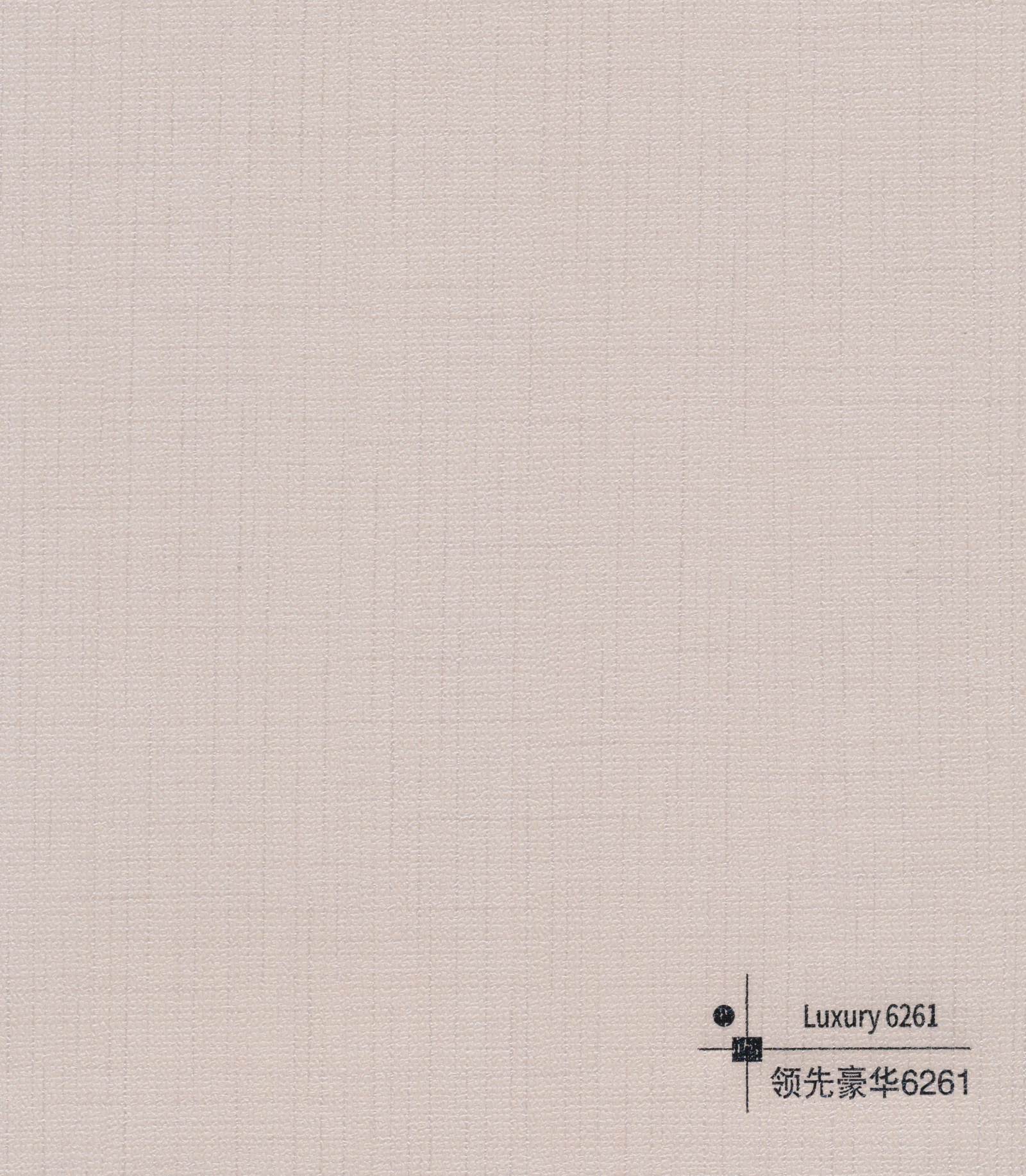

Luxury
6261
领先豪华

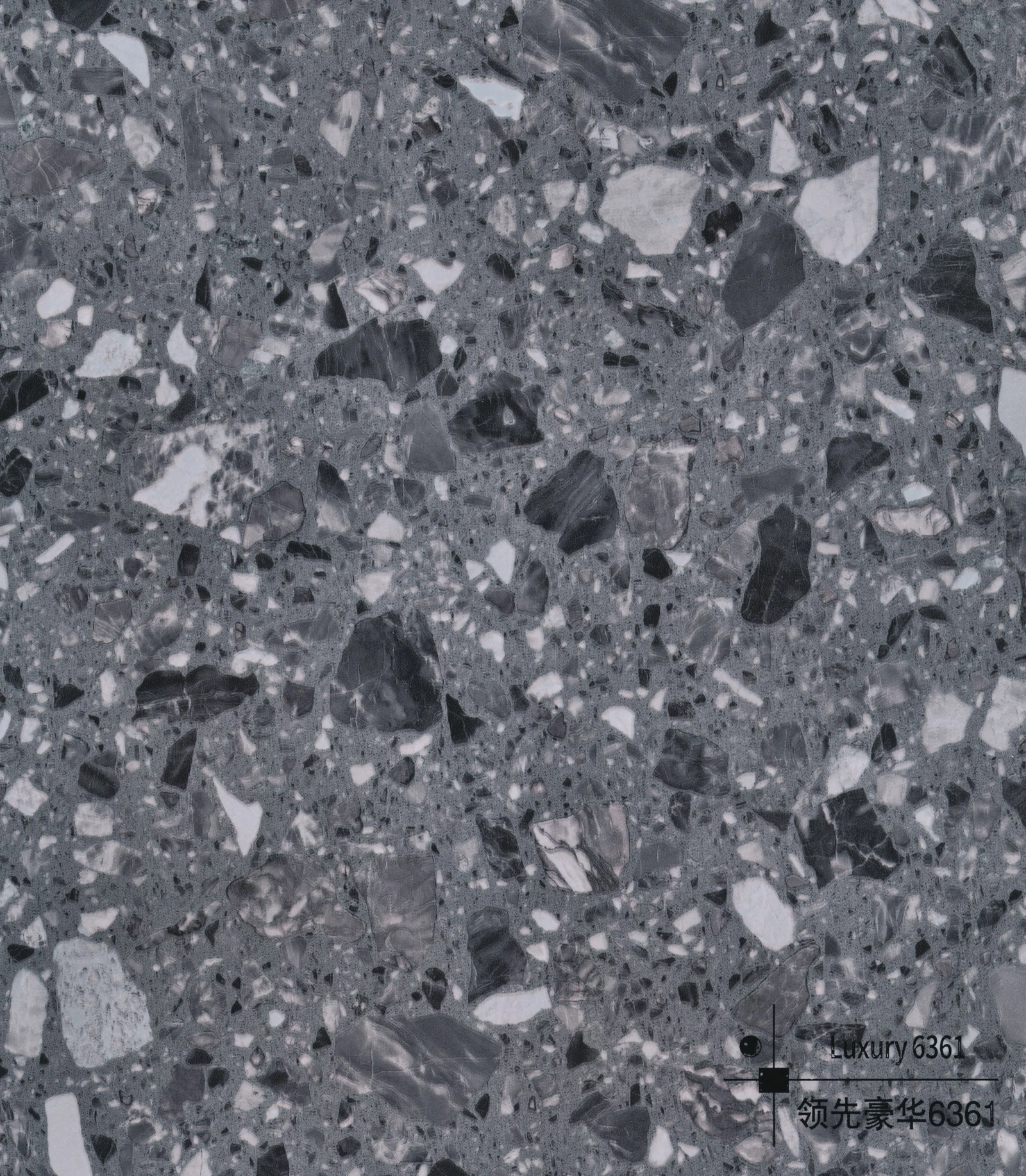

Luxury
6361
领先豪华

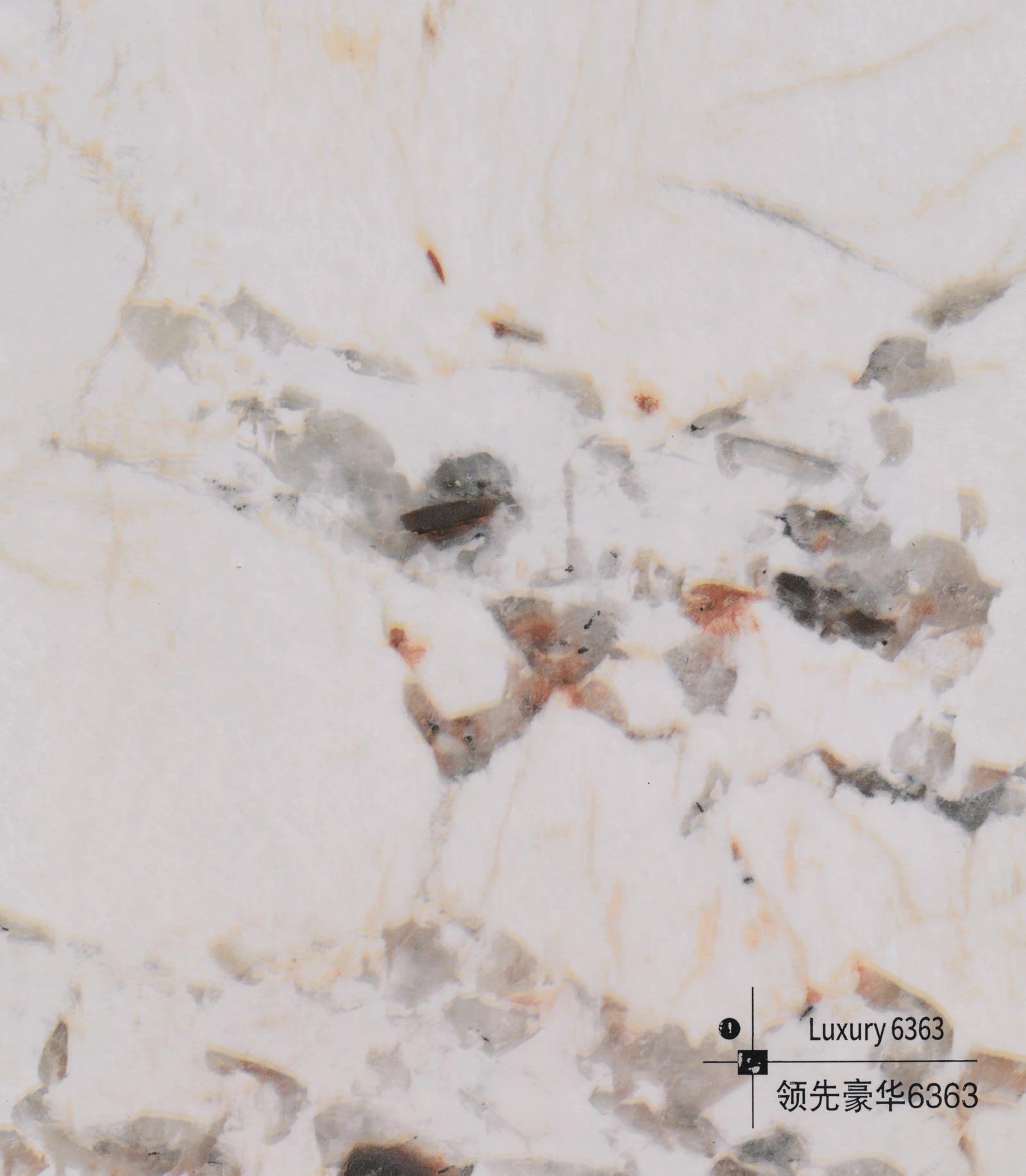

Luxury
6363
领先豪华
Coordinate the finish and board.
Choose a finish by its name and code, then specify the board family, thickness and edge. Finish collections and board families are separate choices; compatibility depends on the selected combination.
Appearance reference, not composition or origin.
Wood, silk, leather and travertine names describe decorative appearances. It does not establish solid wood, natural silk, leather composition or Italian origin. Display colour and photographed texture require physical-sample confirmation.
03 / FINISH LIBRARY
One system. Different expressions.

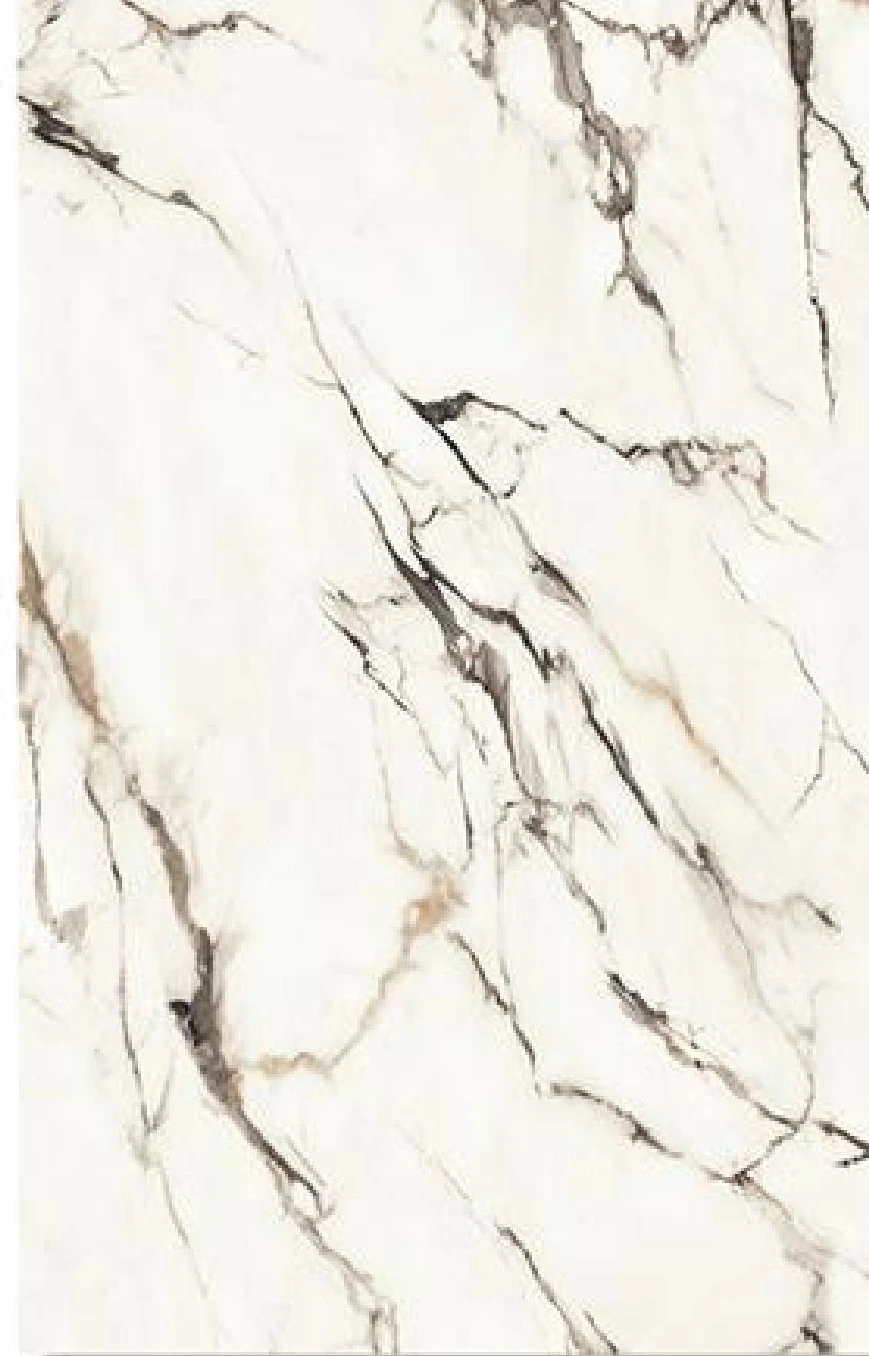

Wood, stone and textile-like appearances are decorative finishes, not claims that the panel is made of those natural materials.
Compare decorative appearances with physical samples. Finish compatibility and availability depend on the selected board.

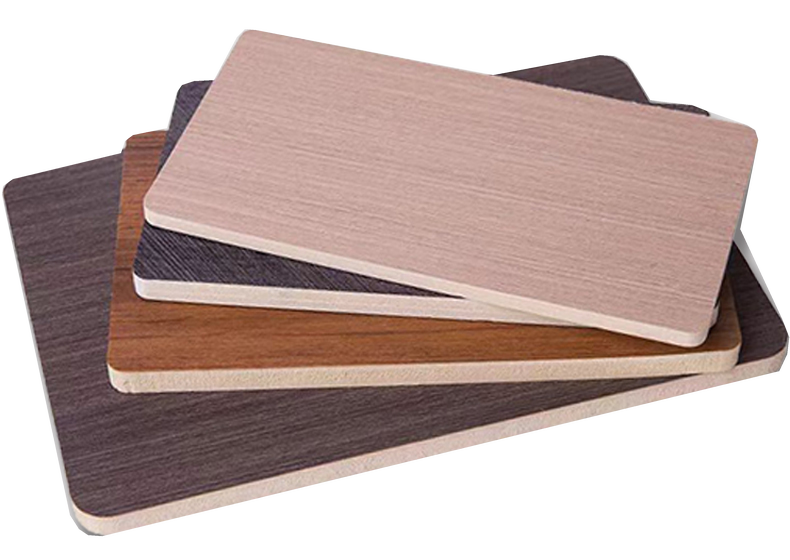

SURFACE / EDGE
The face sets the tone.
See colour, texture and the visible edge together. Surface appearance is one part of the complete specification.

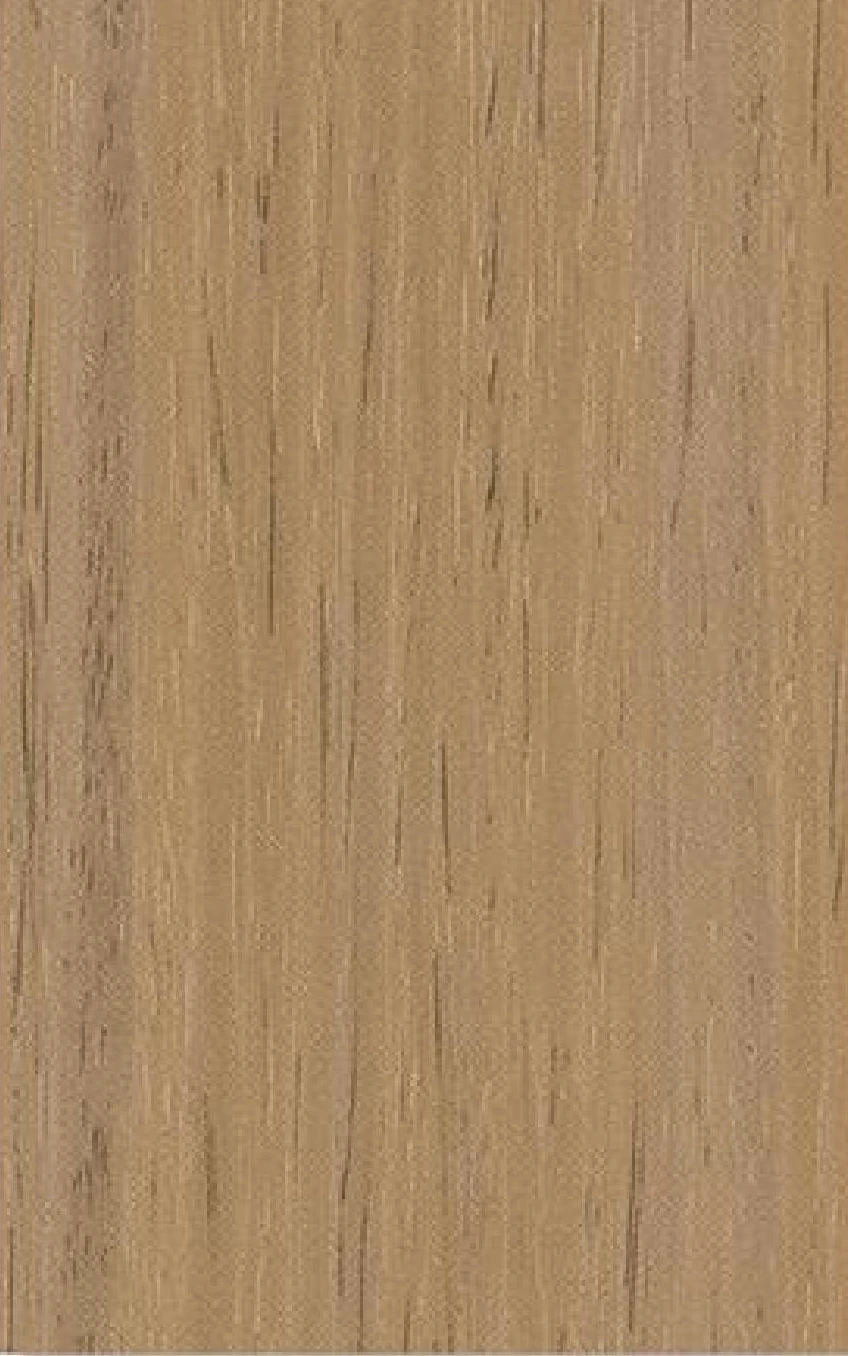

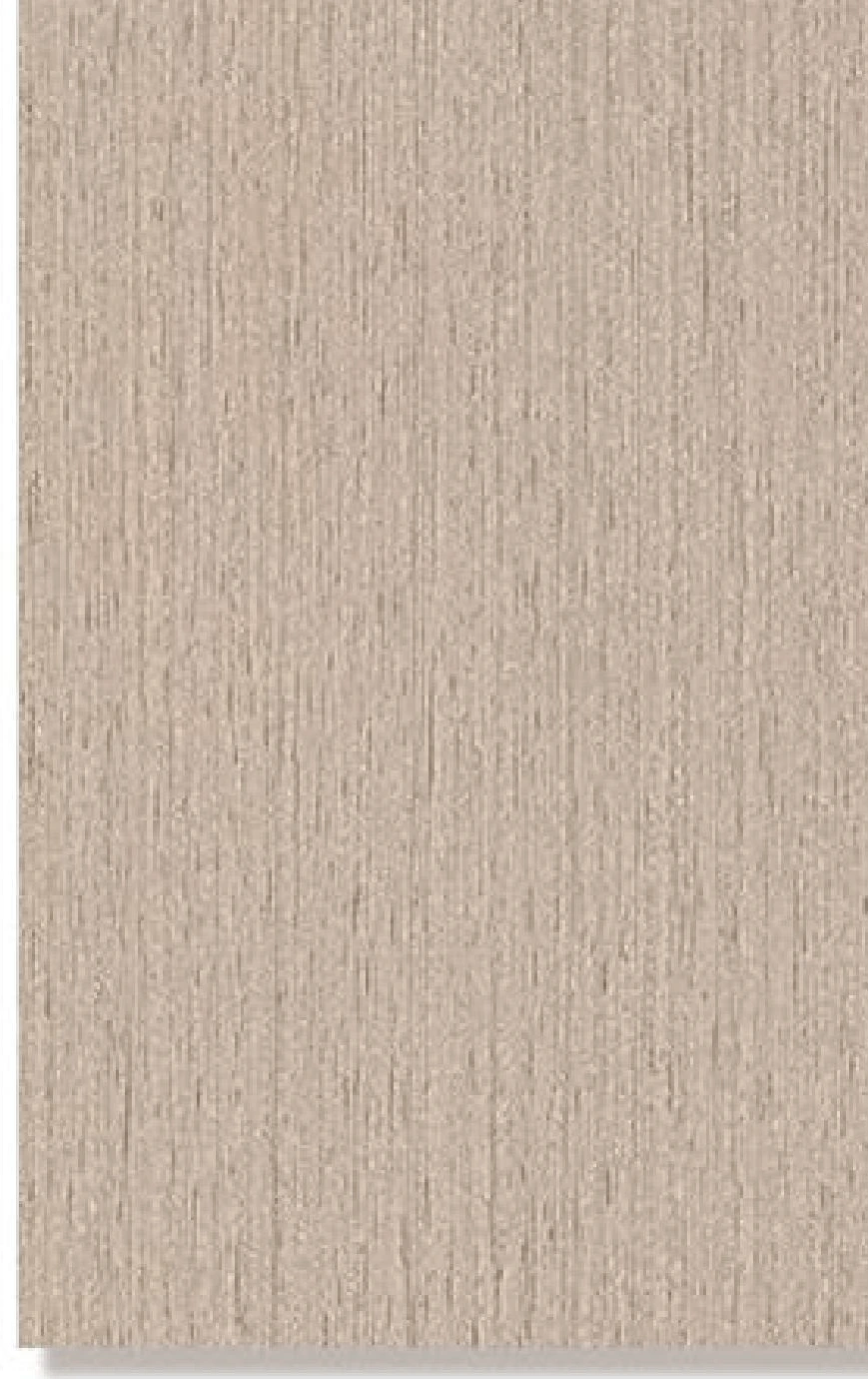

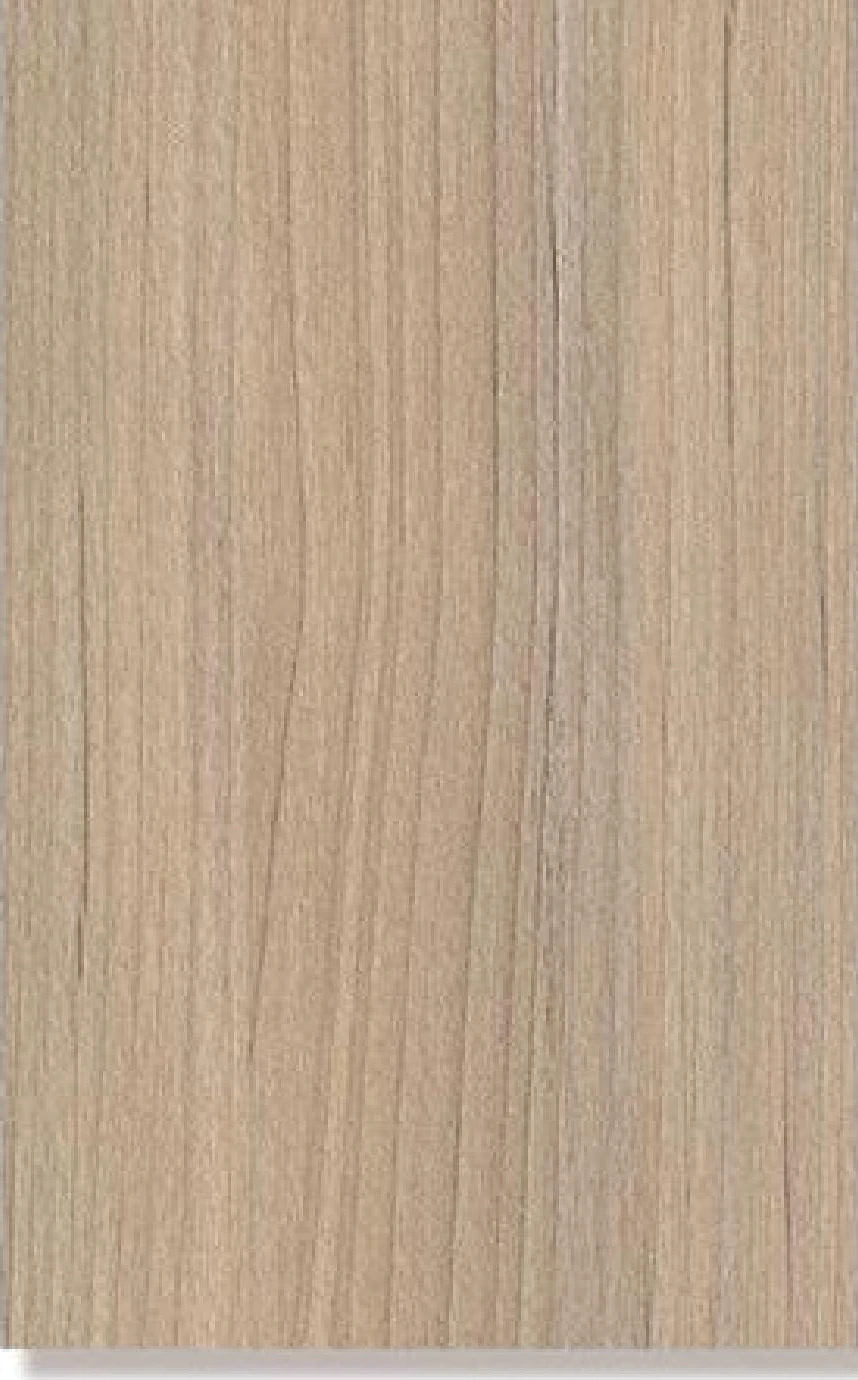

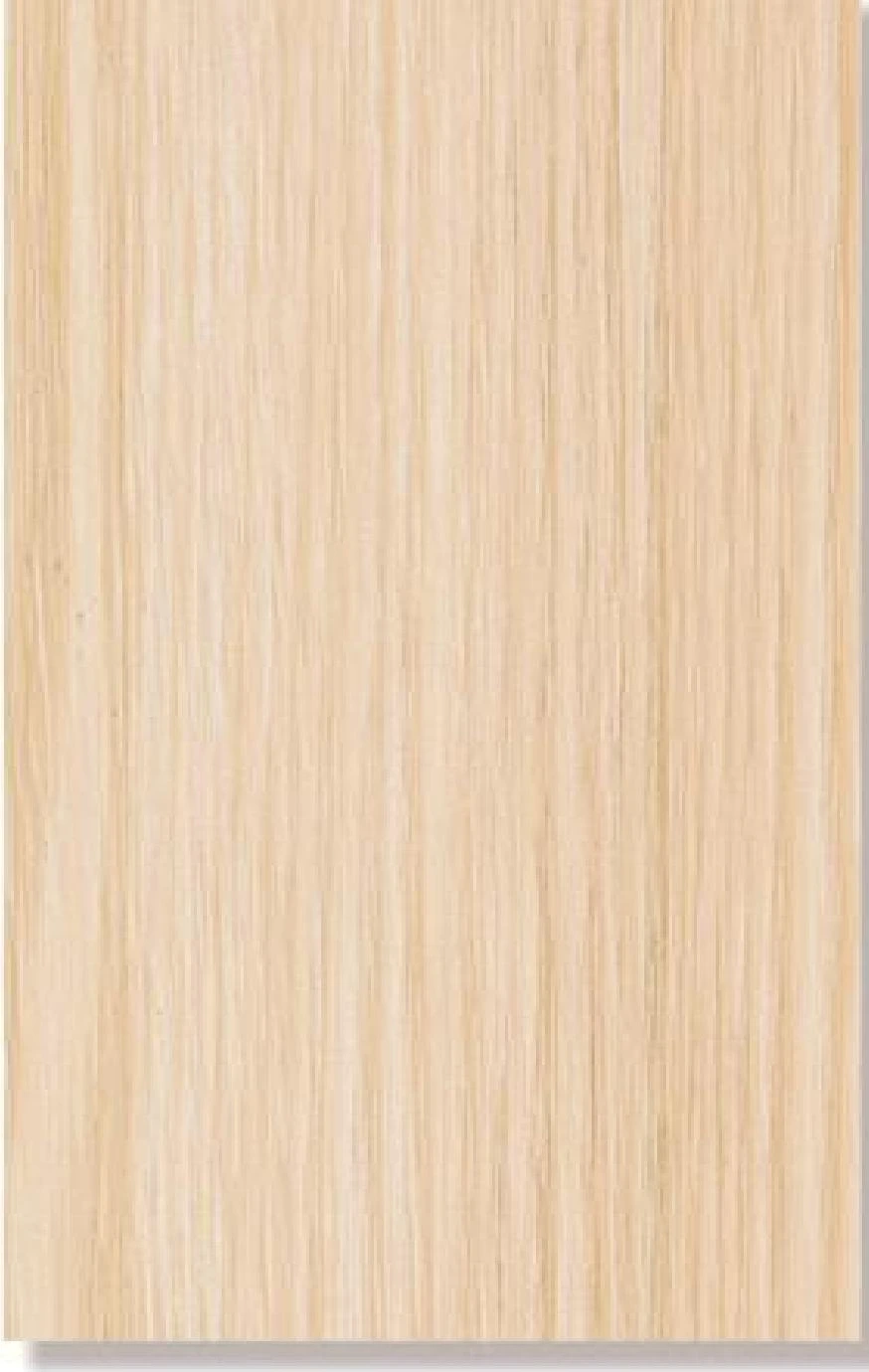

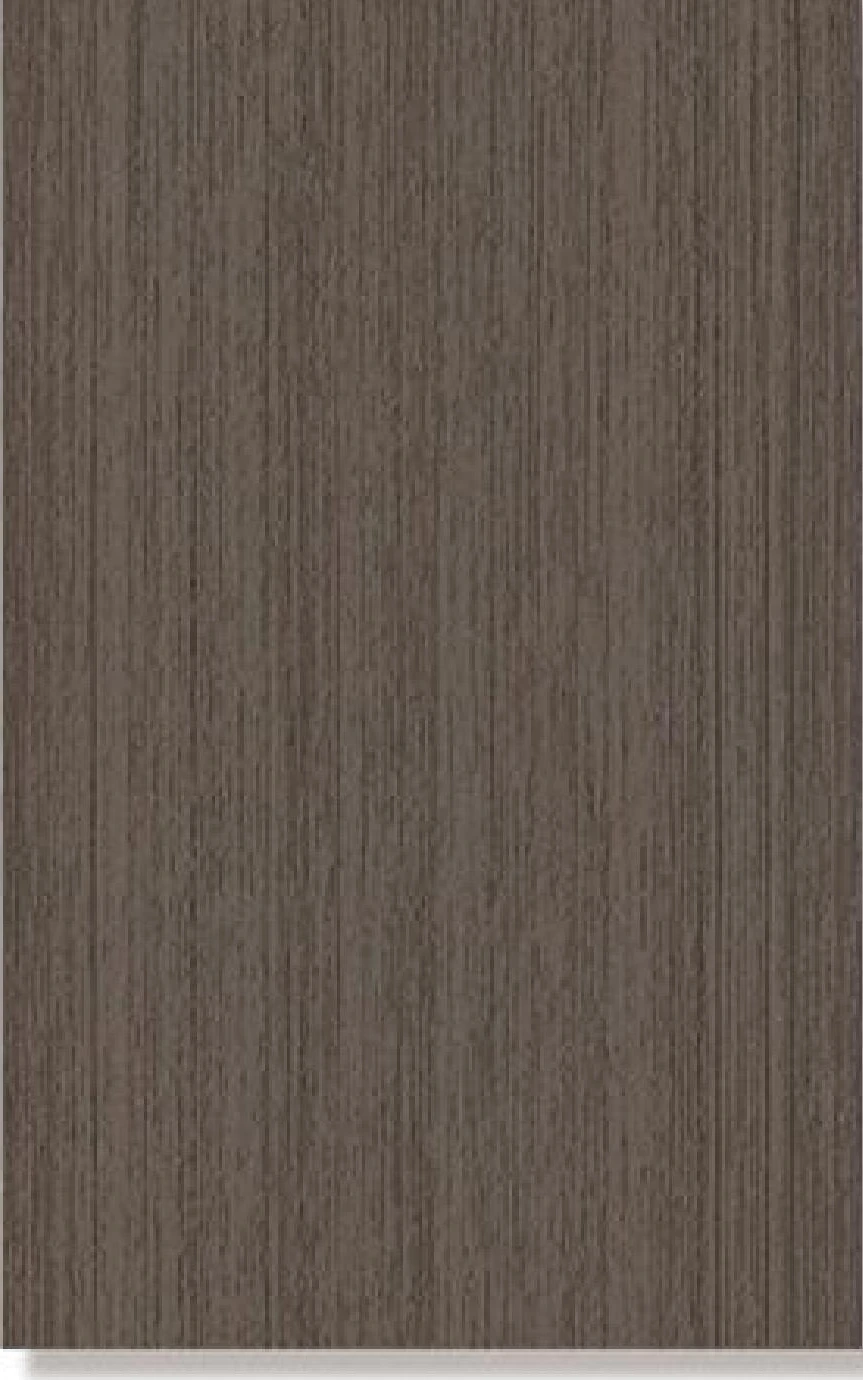

Wood-grain appearances
Grain direction and tonal contrast read differently across a whole wall. Compare the finish with a physical sample.

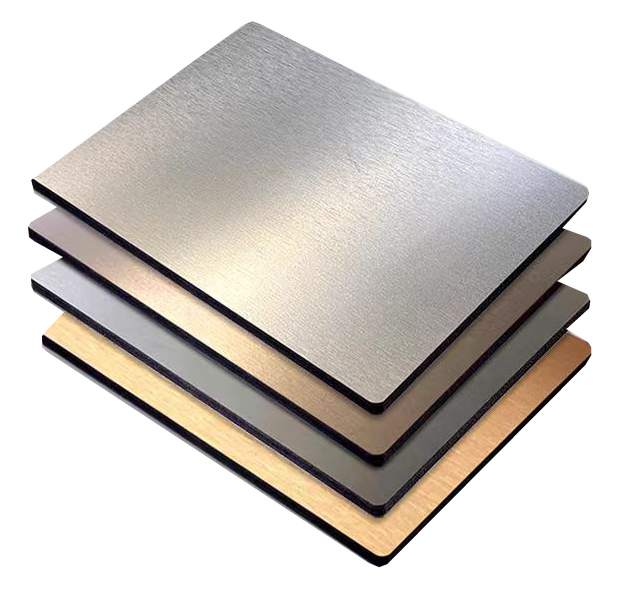

Metallic-looking finishes
Reflective faces bring another material expression. Choose the finish separately from the board family and connection.
PRODUCT FAMILIES / SURFACE PROCESS
Different constructions. Clearly separated.
Decorative panel and profile systems spanning wood-inspired finishes, fluted geometries, wall and ceiling applications. The technical archive includes named bamboo/wood-fibre samples covering decorative panels, grilles, ceiling elements and square profiles.
Decorative boards
Water-based decorative boards, carbon-crystal boards and coextruded bamboo-charcoal boards form distinct ranges. Water-based decorative boards include 1220 mm-wide water-based decorative boards in 5 and 8 mm thicknesses.
Bamboo/wood-fibre wall panels
The presentation lists fifth-generation 400 / 600 / 800 and sixth-generation 400 / 600 families, 7 / 8 / 9 mm thickness options and several hole geometries. These are range options, not a promise that every thickness and edge can be combined.
Fluted, square & ceiling profiles
Compare hollow and solid fluted sections, square profiles and open-back ceiling elements in the section library below. Acoustic-panel categories have separate geometry; a section drawing alone is not an acoustic rating.
Surface process & dimensions
PUR lamination bonds the decorative surface to the board. Its decorative-board family lists a regular 2.6 m length and 2–6 m custom options; bamboo-fibre wall panels offer 3 m regular and 2–6 m custom lengths. Confirm the specific family and current order specification.
PRODUCT / FORM & SECTION
See the face. Read the edge.
Compare six profiles through their surface appearance and dimensioned cross-section.

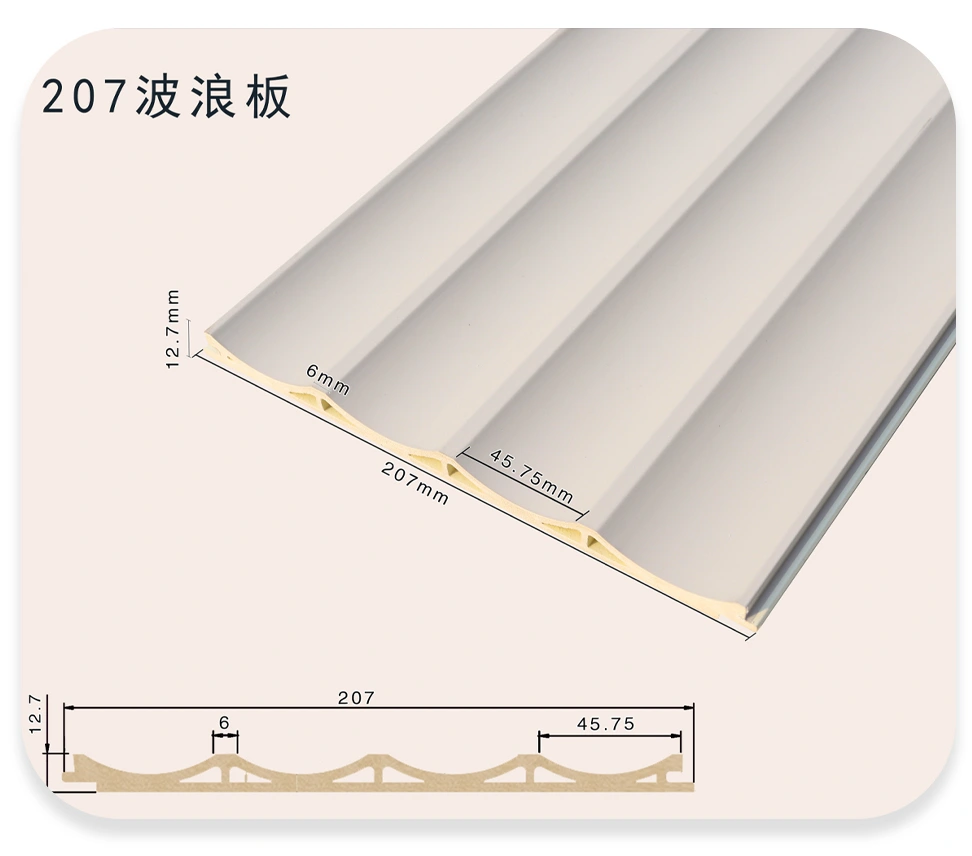

207 wave panel
207 × 12.7 mm

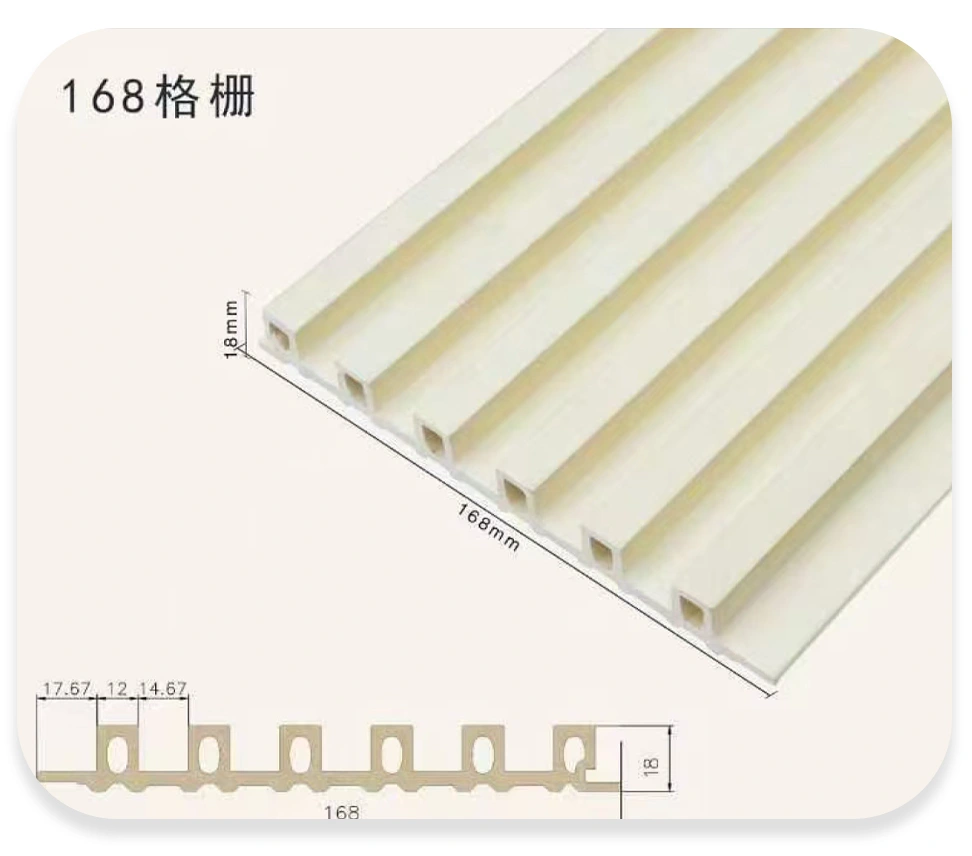

168 grille
168 × 18 mm

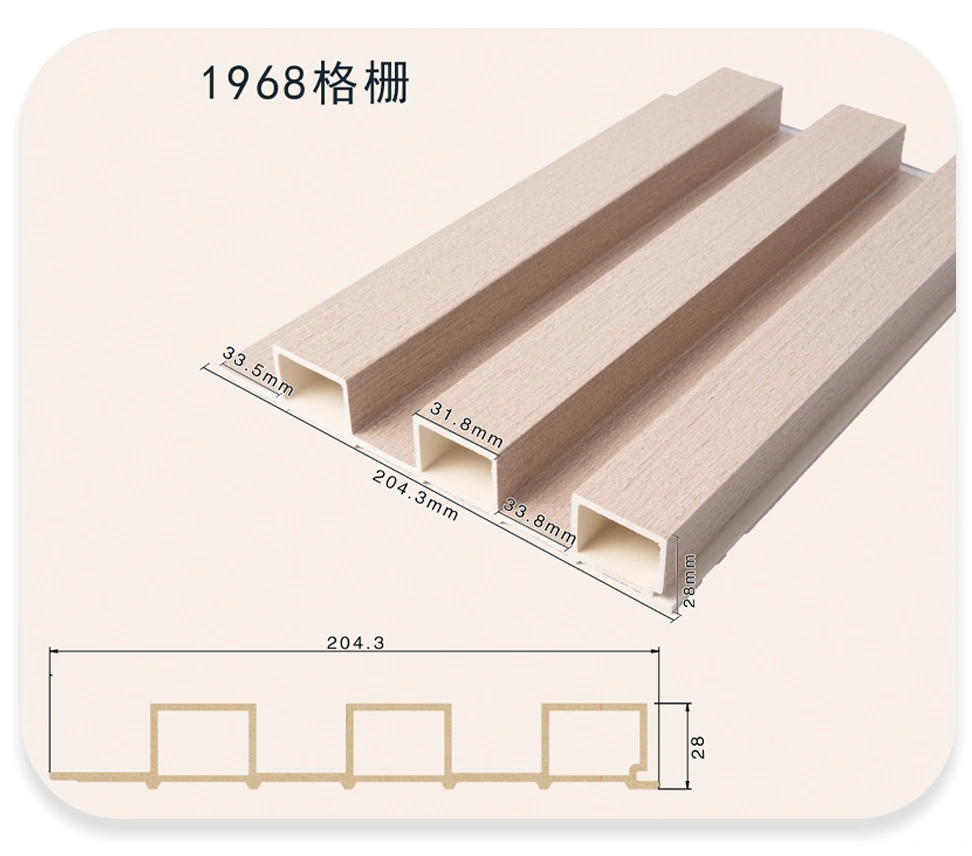

1968 grille
204.3 × 28 mm

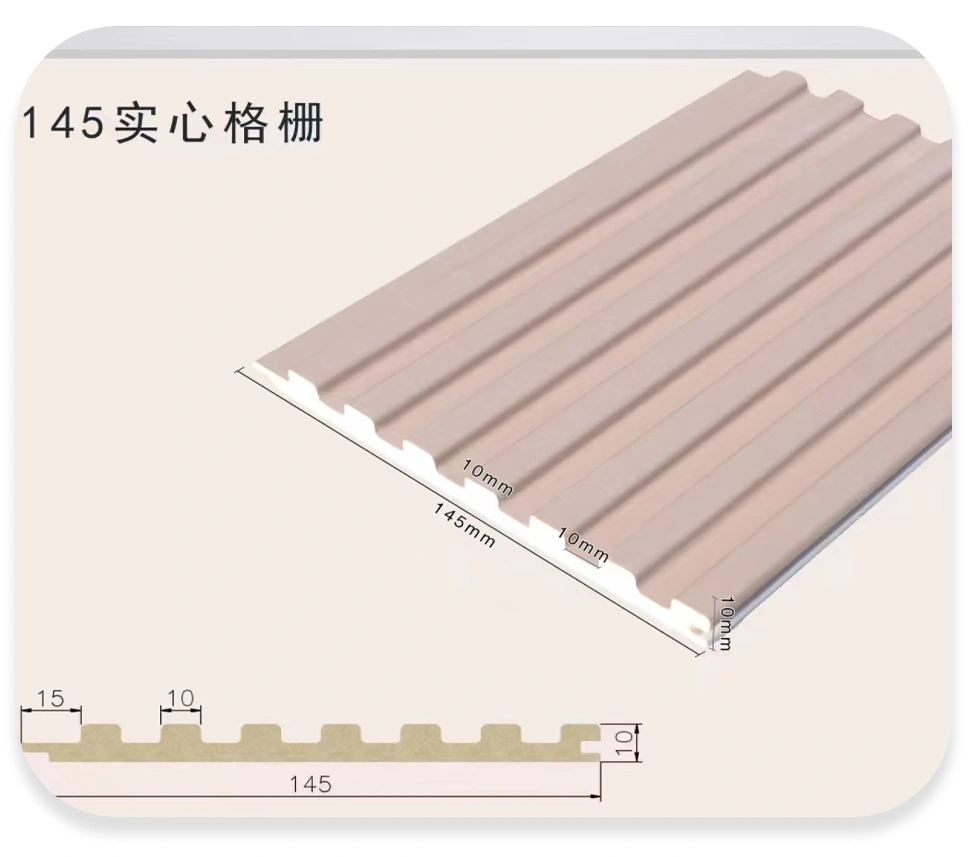

145 solid grille
145 × 10 mm

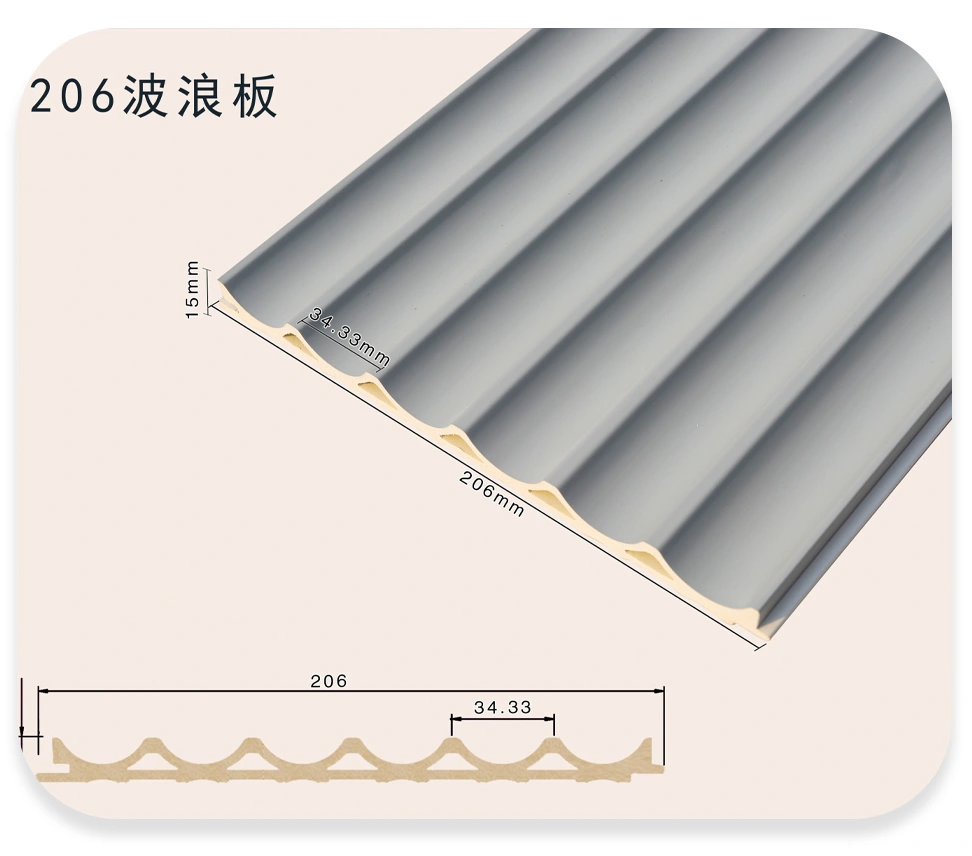

206 wave panel
206 × 15 mm

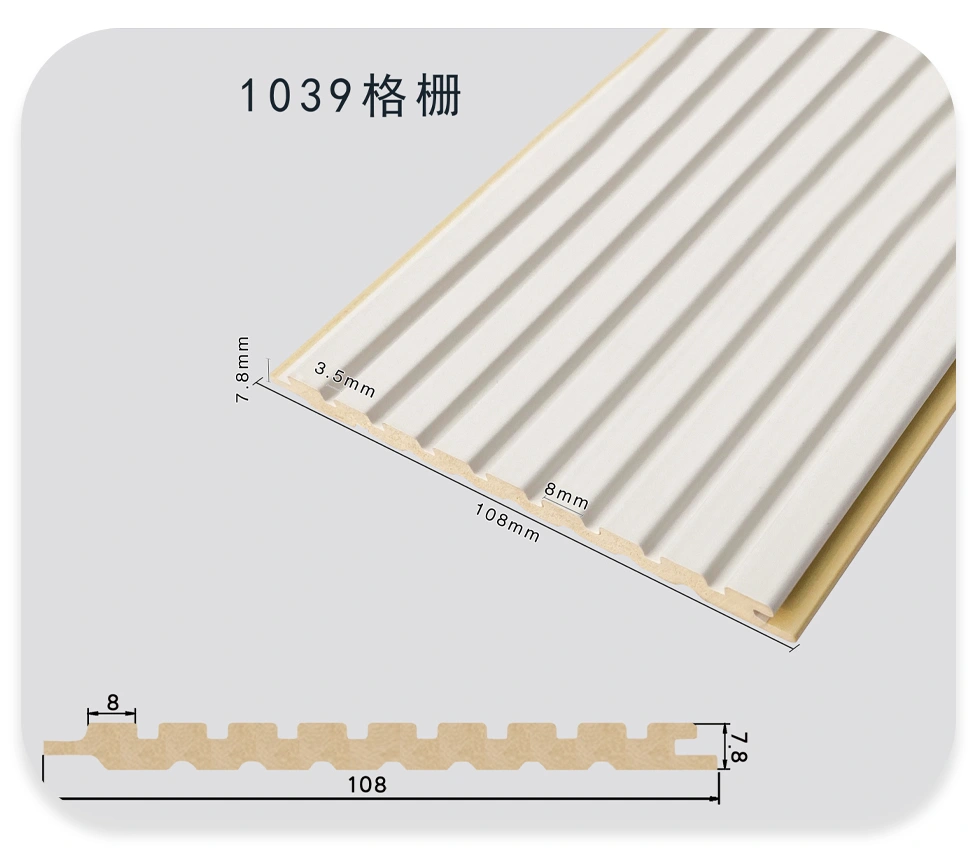

1039 grille
108 × 7.8 mm
NEXT / RESOLVE THE DETAIL
From a surface
to a resolved junction.
0102
Compare the connections
Flat, V-shaped, recessed and locking appearances use different edge geometries.
Find the finishing element
Browse junctions, corners, ends and skirting by accessory model. Match the board and connector together.
Joint photographs explain connection geometry. Fixing, movement allowances and load requirements follow the approved product-specific installation design.
PRODUCT / READING GUIDE
Three constructions. Distinct applications.
Water-based decorative panel
Film / hot-melt bonding layer / high-density base board.
READ THIS CONSTRUCTION →Coextruded construction illustration
Scratch coating / decorative film / PUR / protective face layer / coextruded fibre base / protective back layer.
READ THIS CONSTRUCTION →SPC wall-panel construction
SPC base / decorative paper / PVC wear layer / UV surface, from back to face.
READ THIS CONSTRUCTION →Layer count describes construction, not a quality ranking. None of these diagrams establishes a layer stack for every board code, fluted profile or acoustic-category panel. A finish collection is not a base-board family; a report applies to its named specimen and test assembly.
CHECK THE TESTED SPECIMEN →01 / CONSTRUCTION
Read beneath the surface.
A three-part water-based decorative-panel construction, distinct from coextruded boards.
Construction diagram, not to scale or for installation.
The decorative film provides the visible colour and pattern.
The adhesive is a factory lamination layer, not an on-site installation adhesive. Coextruded boards use a different construction.
02 / SECTION LIBRARY
Form, measured.
Choose a family to compare shape, dimensions and hollow or solid construction.
PRODUCT MODEL
150 grille
Thickness 26 mm
Dimensions describe the profile section, not the installed cover width.
Hollow ribs, three raised faces.
EXPLORE JOINTS & INSTALLATION →Overall width, model designation and installed cover width are not interchangeable. Confirm length, tolerances, finish compatibility and fixing detail against the current supply specification.
PRODUCT / BASE-BOARD FAMILIES
Specify a board. Not just a colour.
Choose from Zhuxiangmu, carbon-crystal board and Jingangmu, each with its own thickness, width and edge options.
Zhuxiangmu / 竹香木
17 entries · 24001–24017
5 / 8 / 9 / 10 / 12 / 15 mm
Carbon-crystal board / 碳晶板
9 entries · 24101–24109
5 / 8 / 9 mm
Jingangmu / 金刚木
13 entries · 24201–24213
7 / 8 / 9 / 12 mm
Compare thickness and width by model. Choose the finish and matching connection as separate parts of your specification.
How two similar codes differ
24005 offers V-U and locking-edge options alongside flat and double-female grooves at 8 × 1220 mm. Carbon-crystal models 24102 and 24104 share an 8 mm thickness and the same edge options, with widths of 1220 and 900 mm respectively.
Edge options include flat joint, double-female groove, V-U and locking edge. Select a model, then follow the edge guide to compare connection geometry.
| Model / family | Thickness × width / edge options | Next detail |
|---|---|---|
| 24001Zhuxiangmu | 5 × 1220 mm | Edge guide ↗ |
| 24002Zhuxiangmu | 5 × 1220 mm | Edge guide ↗ |
| 24003Zhuxiangmu | 8 × 1220 mm | Edge guide ↗ |
| 24004Zhuxiangmu | 8 × 1220 mm Flat / Double-female | Edge guide ↗ |
| 24005Zhuxiangmu | 8 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24006Zhuxiangmu | 8 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24007Zhuxiangmu | 8 × 900 mm Flat / Double-female | Edge guide ↗ |
| 24008Zhuxiangmu | 8 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24009Zhuxiangmu | 9 × 1220 mm Flat / Double-female | Edge guide ↗ |
| 24010Zhuxiangmu | 9 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24011Zhuxiangmu | 9 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24012Zhuxiangmu | 9 × 900 mm Flat / Double-female | Edge guide ↗ |
| 24013Zhuxiangmu | 9 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24014Zhuxiangmu | 9 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24015Zhuxiangmu | 10 × 1220 mm Flat / Double-female / V-U | Edge guide ↗ |
| 24016Zhuxiangmu | 12 × 1220 mm Flat / Double-female / V-U | Edge guide ↗ |
| 24017Zhuxiangmu | 15 × 1220 mm Flat / Double-female / V-U | Edge guide ↗ |
| 24101Carbon-crystal board | 5 × 1220 mm | Edge guide ↗ |
| 24102Carbon-crystal board | 8 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24103Carbon-crystal board | 8 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24104Carbon-crystal board | 8 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24105Carbon-crystal board | 8 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24106Carbon-crystal board | 9 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24107Carbon-crystal board | 9 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24108Carbon-crystal board | 9 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24109Carbon-crystal board | 9 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24201Jingangmu | 7 × 1220 mm | Edge guide ↗ |
| 24202Jingangmu | 8 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24203Jingangmu | 8 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24204Jingangmu | 8 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24205Jingangmu | 8 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24206Jingangmu | 8 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24207Jingangmu | 8 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24208Jingangmu | 9 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24209Jingangmu | 9 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24210Jingangmu | 9 × 1220 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24211Jingangmu | 9 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24212Jingangmu | 9 × 900 mm Flat / Double-female / V-U / Lock | Edge guide ↗ |
| 24213Jingangmu | 12 × 1220 mm Flat / Double-female / V-U | Edge guide ↗ |
PRODUCT / READING GUIDE
Choose form, finish and application separately.
Broad wall panels
24401 / 24402 share the 400 width and V / flat-joint description but have 8 / 9 mm thicknesses. 24403 is the 9 mm seamless-lock entry. The 600 and 800 entries retain their own edge descriptions.
SEE THE RELATED DETAIL →Relief and acoustic-category profiles
245xx Great Wall and 246xx acoustic-category entries are separate lists. For example, 24505 is 30 mm thick versus 24501 at 8 mm; 24601 and 24604 share 12 × 220 mm, but one is named bamboo/wood fibre and the other solid Jingangmu. Neither the name nor width establishes acoustic performance.
SEE THE RELATED DETAIL →Grille, ceiling and square profiles
Applications include residential, office / meeting, hospitality, retail and public-space applications. Clip-on ceiling profiles (247xx) and square profiles (248xx) are separate from wall panels. These application categories are not wet-area, fire or load approvals.
SEE THE RELATED DETAIL →Finish families are another selection axis
Finishes include wood, textile, plain colour, stone, mirror and metal appearances. Lingxian, Aijia, PP and Haozhai offer finish references for coordinated interiors. Choose the finish and base board separately; compatibility depends on the selected combination.
COMPARE NAMED FINISH SAMPLES →PRODUCT / COEXTRUDED CONSTRUCTION

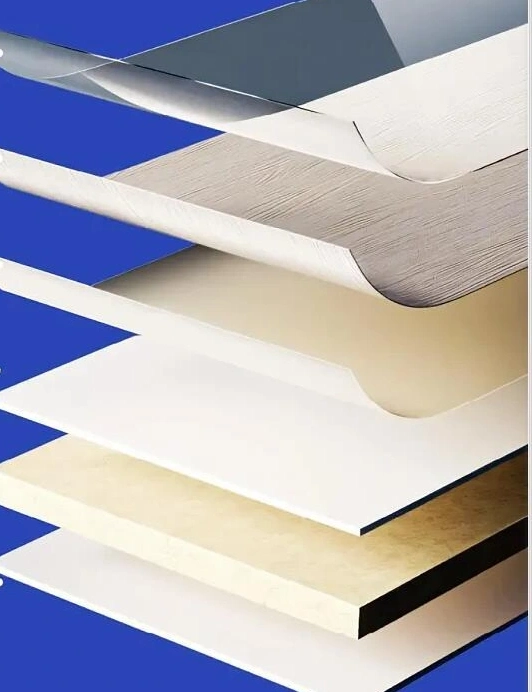

A different laminated construction.
Six components form this coextruded construction. It is distinct from the three-part water-based decorative panel.
- Scratch-resistant coating
- Decorative film
- PUR hot-melt adhesive
- Face protective layer
- High-density fibre coextruded layer
- Back protective layer
The film carries the finish, while PUR bonds the surface during manufacture. Face and back protective layers surround the coextruded base. The PUR layer is not an on-site adhesive specification.
This construction applies to the coextruded panel system, not every decorative board, grille or acoustic-category profile.

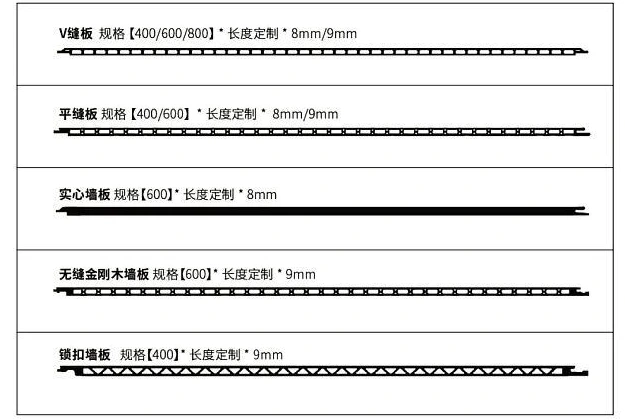

PRODUCT / WALL PROFILES
Twenty entries. Three distinct families.
Wall panels, Great Wall panels and acoustic-category profiles retain their own model numbers and dimensions.
| Model | Product | Dimensions (mm) |
|---|---|---|
| 24401 | 400 panel — V / flat joint | Thickness 8 · Width 400 |
| 24402 | 400 panel — V / flat joint | Thickness 9 · Width 400 |
| 24403 | 400 panel — seamless lock | Thickness 9 · Width 400 |
| 24404 | 600 panel — V / flat joint | Thickness 9 · Width 600 |
| 24405 | 600 panel — U groove | Thickness 9 · Width 600 |
| 24406 | 600 solid wall panel — V joint | Thickness 8 · Width 600 |
| 24407 | 600 Jingangmu — seamless grooved panel | Thickness 9 · Width 600 |
| 24408 | 600 sixth generation — grooved flat joint | Thickness 9 · Width 600 |
| 24409 | 800 panel — V joint | Thickness 9 · Width 800 |
| Model | Product | Dimensions (mm) |
|---|---|---|
| 24501 | 150 Great Wall panel | Thickness 8 · Width 153.5 |
| 24502 | Double-75 flat panel | Thickness 9 · Width 162 |
| 24503 | 190 Great Wall panel | Thickness 12 · Width 199.5 |
| 24504 | 195–12 Great Wall panel | Thickness 12 |
| 24505 | 187 high Great Wall panel | Thickness 30 · Width 187.5 |
| 24506 | 150 hollow panel | Thickness 8.5 · Width 161 |
| 24507 | 195–15 Great Wall panel | Thickness 15 · Width 202 |
| Model | Product | Dimensions (mm) |
|---|---|---|
| 24601 | 210 bamboo/wood-fibre acoustic-category panel | Thickness 12 · Width 220 |
| 24602 | 200 bamboo/wood-fibre acoustic-category panel | Thickness 12 · Width 205.5 |
| 24603 | 198 bamboo/wood-fibre acoustic-category panel | Thickness 12 · Width 208 |
| 24604 | 210 solid Jingangmu acoustic-category panel | Thickness 12 · Width 220 |
Select acoustic-category panels with the required tested assembly; a profile name does not establish an absorption coefficient.
THE MATERIAL EDIT
Profiles make the difference.
- SELECT
- Application · profile or panel format · finish direction
- COORDINATE
- Joints · edges · adjacent materials · lighting
- CONFIRM
- Physical sample · exact SKU · applicable report · installation brief
MATERIAL / KNOWLEDGE
From finish to specification.
Choose a board family and model
Zhuxiangmu, carbon-crystal and Jingangmu occupy separate families in the 39-model table. Check width, thickness and the edge options before choosing a decorative finish.
EXPLORE DETAILS →Record the finish code, not just its appearance

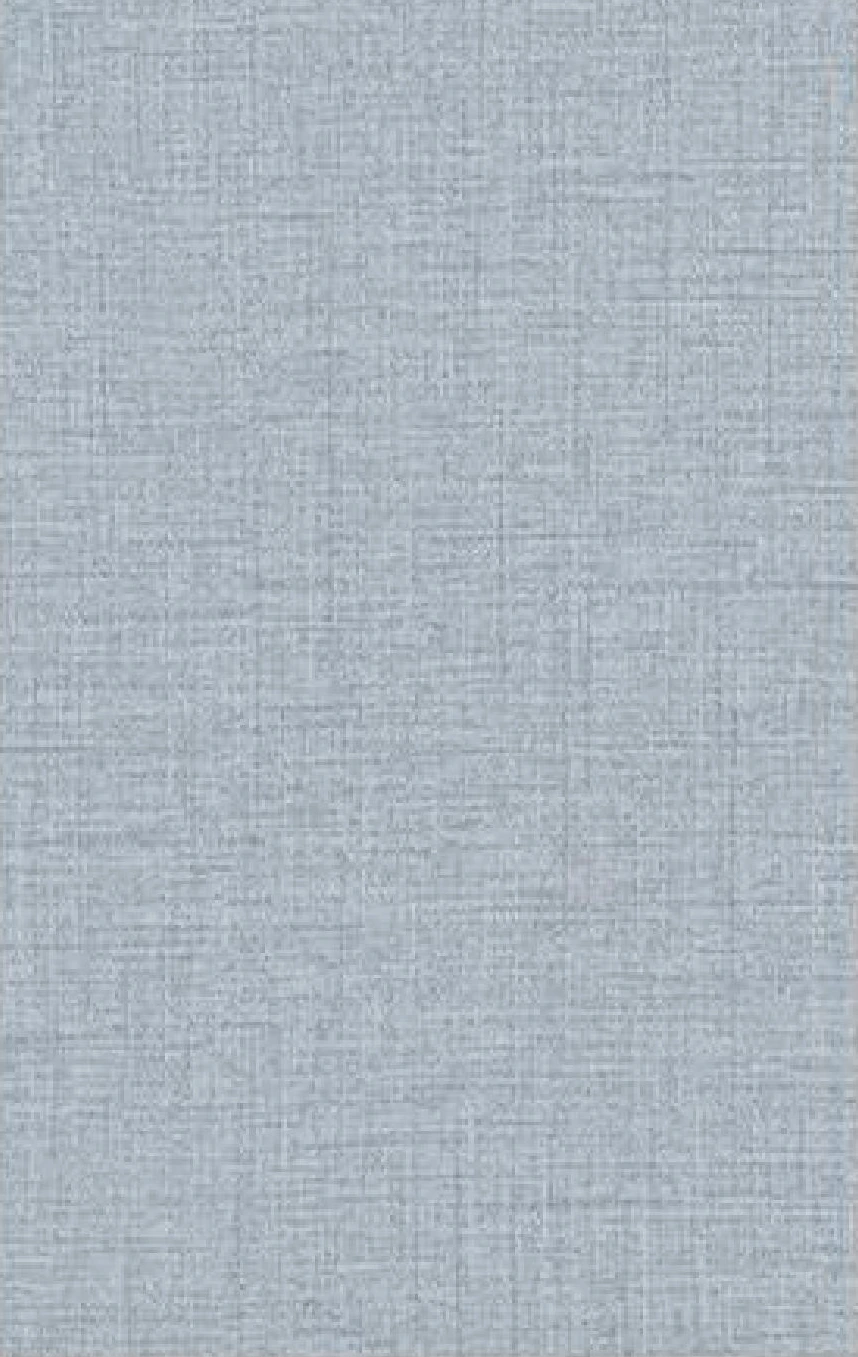

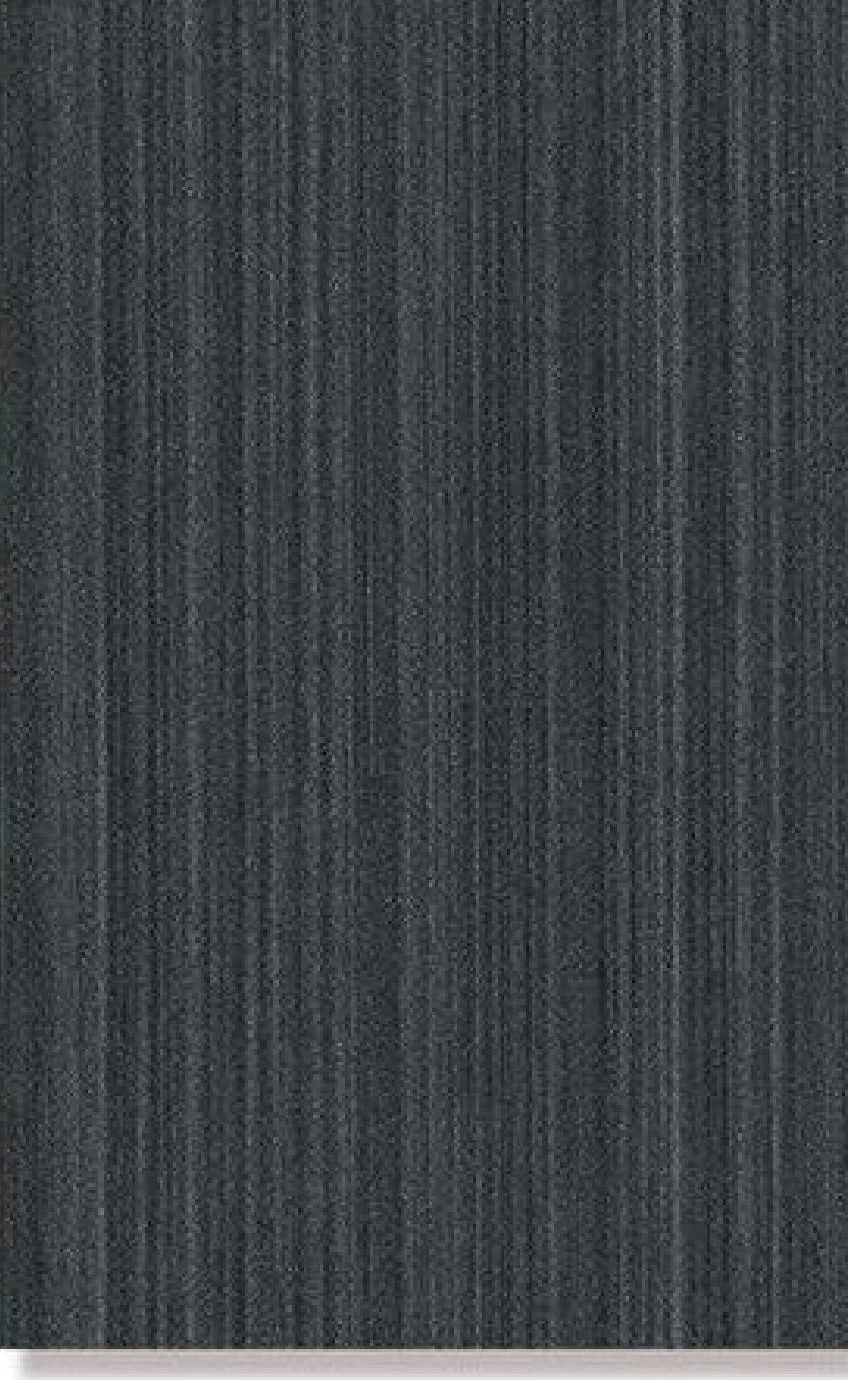

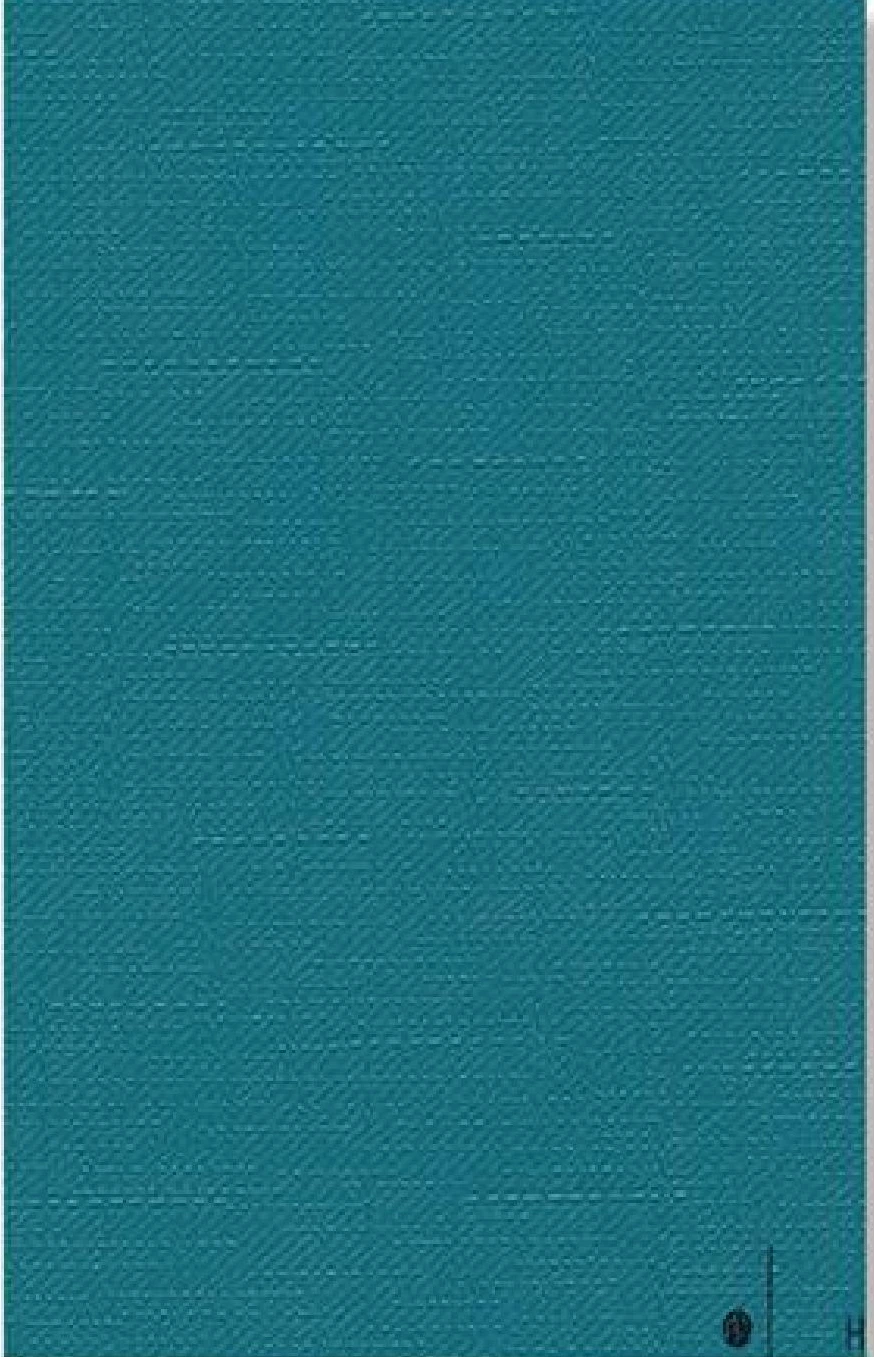

Compare PP, Aijia, Haozhai and Lingxian finishes by name and code. Select the core and board model separately.
EXPLORE DETAILS →Resolve the edge and its matching accessory
Compare flat joint, double-female groove, V-U and locking-edge records separately. Use the selected model and thickness when requesting a matching trim and approved detail.
EXPLORE DETAILS →DOCUMENTED STANDARDS
Evidence, with a defined scope.
Decorative-panel test records
GB/T 24137-2009 · JG/T 579-2021
Bamboo/wood-fibre submitted specimens; results apply to the specimens tested.
Records cover physical properties, surface behaviour and selected substance tests. Results are sample-specific, not blanket performance claims.
CTI A2260207295101001C · 2026-03-27; A2260438434102 · 2026-04-22
Use the complete report with the applicable product and installation conditions.
DISCUSS PRODUCT DOCUMENTATION →
